Stretch wrapper for 50 pallets per day

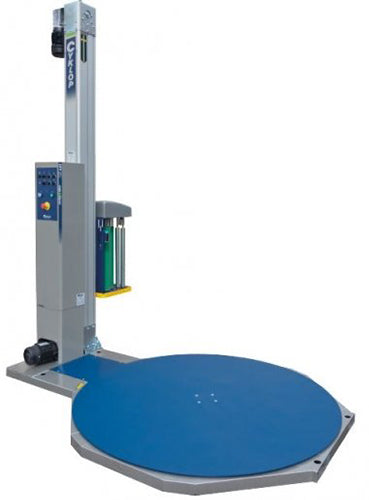

The stretch wrapper CTT 210 is a film-wrapping machine that is simple and quick to operate: the operator places the pallet on the turntable, switches on the wrap programme and cuts off the film when the pallet has been wrapped.

  • Simple and fast to operate
  • Pre-stretch 80% – 145% – 235%
  • Wrapping speed 12 rpm
  • 5 Standard programs + 1 manual program
  • Extremely suitable for wrapping irregular pallet loads
  • Minimal material costs due to low film usage
Cyklop
10791

Request a Quote
Not ready to buy yet? Talk to someone from our team
View full details
Technical Specification
Parameter Value
Machine: Table Diameter Ø1650 mm
Machine: Turntable Speed Max 12 RPM
Machine: Motor Control Frequency controlled,with PLC
Machine: Stretch Film Carriage Speed Adjustable
Machine: Pre-Stretch System Power Ecostretch+
Machine: Pre-Stretch Ratio Up to 230%
Machine: Wrapping Programs 5 standard,1 optional
Power Supply Single-phase 200–240V / 50–60Hz / 10A IP54
Goods: Max Size (L x W) 1200 x 1000 mm
Goods: Max Height incl. Pallet 2200 mm
Goods: Max Weight 2000 kg
Stretch Film Core Diameter: 76 mm, Outer Diameter: 250 mm, Length: 500 mm
Stretch Film 9–35 µm
