Paper tape dispenser for continuous use


The LAPOMATIC 2.0 paper tape dispenser is an electronic tape dispenser for gummed paper tape. Designed for continuous use, extremely reliable, quiet and user-friendly. Parts susceptible to corrosion are painted or galvanized to ensure a long working life.

  • Money saving
    The adjustable pressure plate ensures the correct use of all types of water activated tape available on the market, without any risk of jamming, reducing waste and cost.
  • Safety
    Motor, top heater and control circuits: 24 Volts DC, makes this machine the quietest and safest machine on the market.
  • Suitable for all type of gummed paper tape
    The variable water level and the large moistening brush ensure smooth and non-stop operation with any type of water-activated tape - whether light or heavy duty.
  • Accuracy in the calculation of tape length
    The motorised cutting system and motor control via a customised programme allows for a cutting tolerance of approx. 4 mm.
  • Sharp, concise cutting
    Various treatments including hardening and grinding allows the sharp knives to cut precisely across the entire 20 cm surface area of the tape width.

Solicitar una cotización
¿Aún no estás listo para comprar? Habla con alguien de nuestro equipo
Ver todos los detalles
Especificación técnica

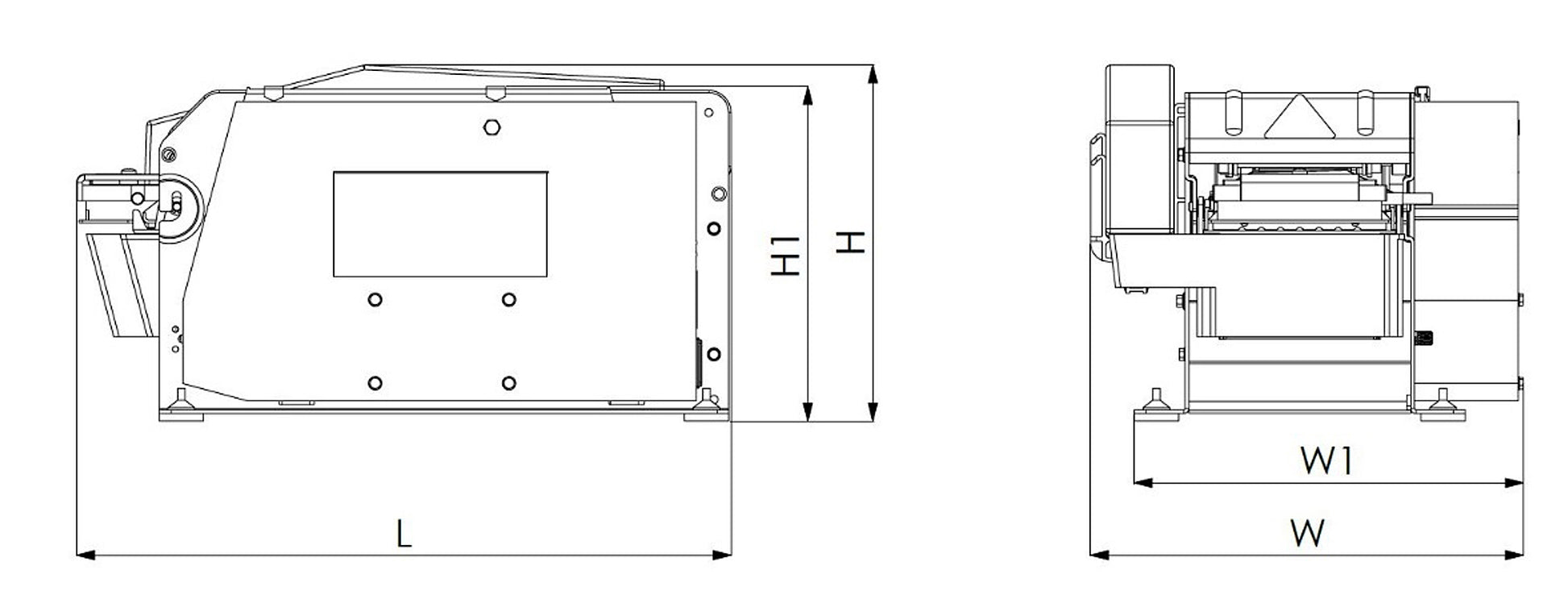

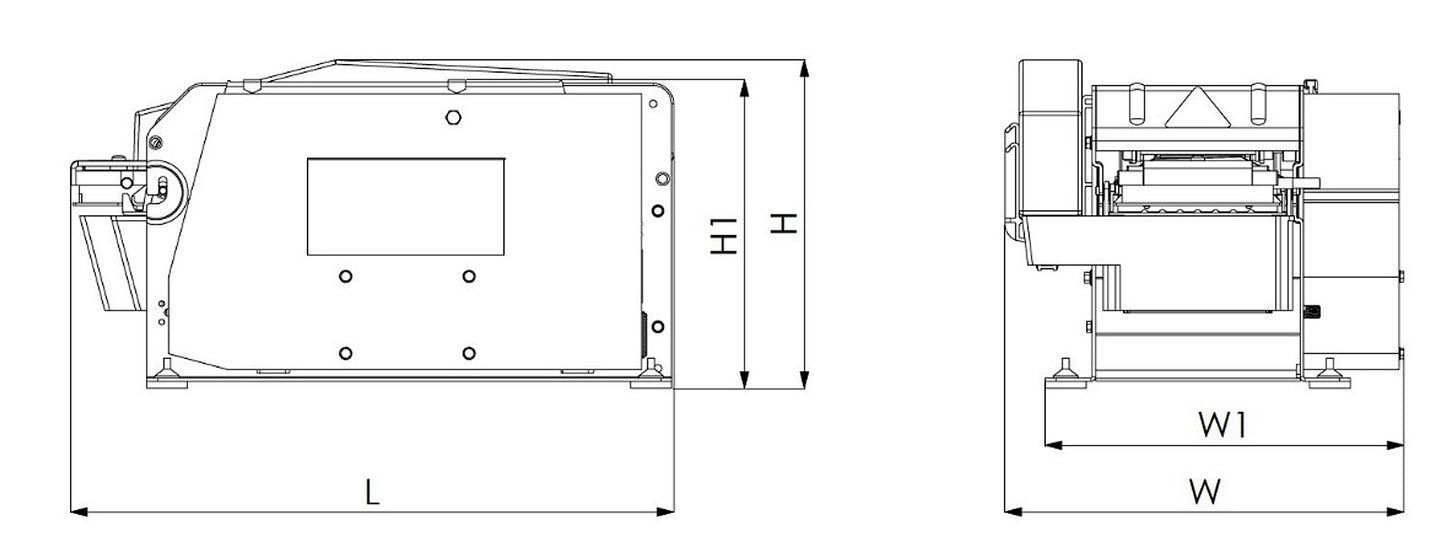

Parameter Value
Length(L) 450 mm
Width (W / W1) 295/265 mm
Height (H / H1) 240/225 mm
Weight (no load) 11.5 kg
Power consumption 84 W
Auxiliary circuits voltage 24 V DC
Tape dispensing speed 55 m/min
Tape cutting length 100 ÷ 2100 mm
Tape cutting length 4 ÷ 82.5 in
Type All
Width 20 ÷ 100 mm
Max. diameter 200 mm
Width 0.8 ÷ 4 in
Diameter 7 in
Maximum operating altitude(a.s.l.) 1500 m
Relative humidity (at a temperature of 20°C÷40°C) 20% + 90%
Ambient operating temperature -5 ÷ +40 °C
Noise level <70 dB (A)
Videos de Servicio
Videos de Producto
Más información

Features

  • Double foot switch
    Two push button keys program lengths for "H" box sealing to use with 2 pedals. This allows the same machine to be used by 2 operators.
  • Maximum roll width 100 mm
    100 mm tape width allows you to close very heavy and bulky packages, ensuring the integrity of the shipment.
  • Robust corrosion-resistant construction
    Metal construction allows the machine to remain firmly stable on the surface.
    All parts susceptible to corrosion are painted or galvanized to ensure a long working life.
  • Waterproof 'Soft Touch' Keyboard
    The keyboard has 22 keys for preset measurements with a +5 cm (2" ) key.

Optional Components

  • External lines connections
    The machine can receive a signal so it can be used on automatic packaging lines. The same outputs can also be used for foot switches.
  • Battery Operated
    The Lapomatic battery allows you to work anywhere, plug-free! The durable Li-Ion battery is good for 6,000 operations. Recharge the battery at the end of the work shift.
  • Photocell
    The Lapomatic F works as, either a dispenser for gummed tape, or a labeling machine
  • Random option available
  • Adjustable tape output delay
  • 4 wheel trolley for freedom of movement and mobility. You can use the machine in all places in your warehouse.
