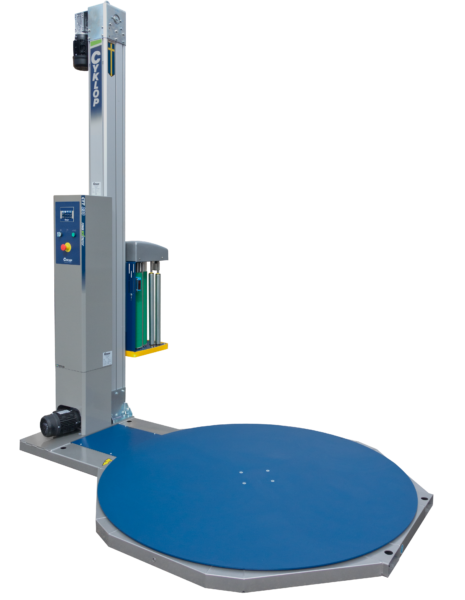

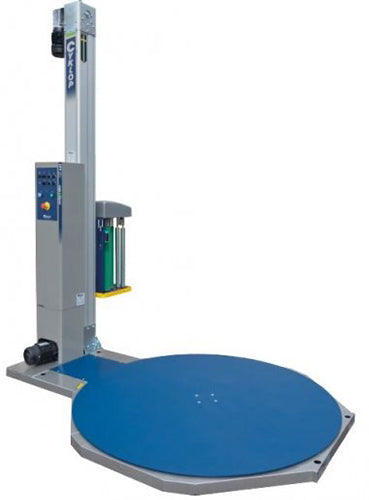

拉伸包装机: CTT 230

Name: 拉伸包装机: CTT 230
Brand: Cyklop
Availability: OutOfStock

300% 预拉伸的托盘包装机

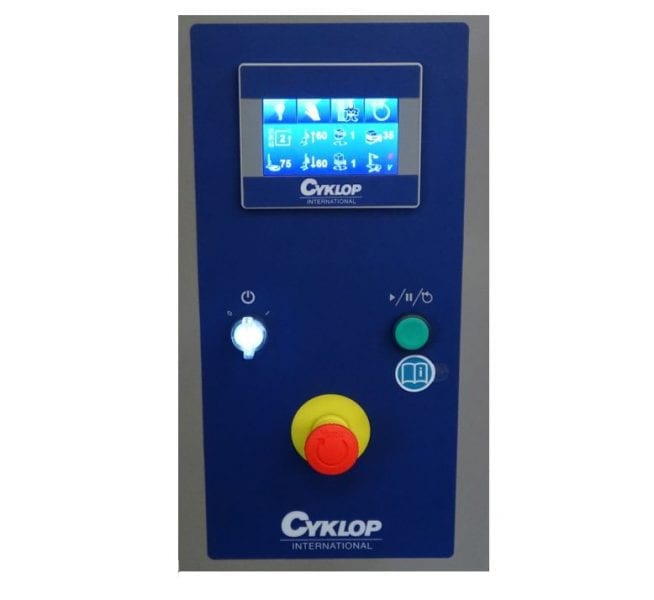

CTT 230 托盘包装机是一款操作简单、快速的薄膜包装机：操作员将托盘放在转盘上，打开包装程序，并在托盘包装完毕后切断薄膜。

技术规格

Parameter	Value
Machine: Table Diameter	Ø1650 mm Ø1650 mm
Max. Pallet Size (L x W x H)	1200 x 1000 x 2200 mm 1200 x 1000 x 2200 mm
Max. Pallet Weight	2000 kg 2000 kg
Machine: Speed	Up to 12 RPM Up to 12 RPM
Machine: Pre-Stretch System	Power Ecostretch Power Ecostretch
Machine: Pre-Stretch Ratio	30% - 300% 30% - 300%
Machine: Wrapping Programs	4 adjustable programs 4 adjustable programs
Power Supply	1-phase 200-240 V / 50-60 Hz / 10 A 1-phase 200-240 V / 50-60 Hz / 10 A
Stretch Film	Core: 76 mm, Outer Diameter: 250 mm, Width: 500 mm
Noise Level	9–35 µm 9–35 µm
Temperature Range	<70 dB(A) (cast film,9 RPM) <70 dB(A) (cast film,9 RPM)

宣传册和下载资料

下载手册

服务视频

产品视频

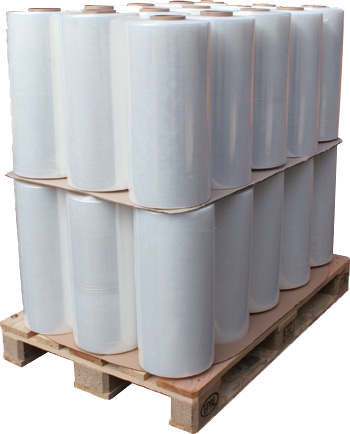

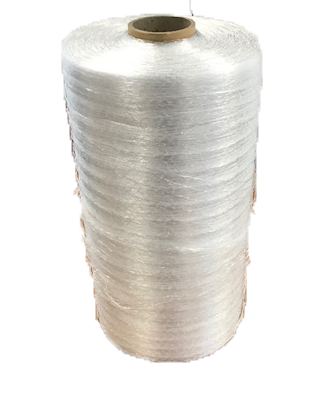

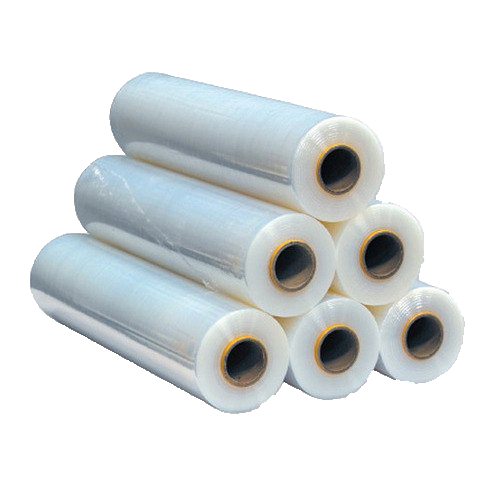

耗材
