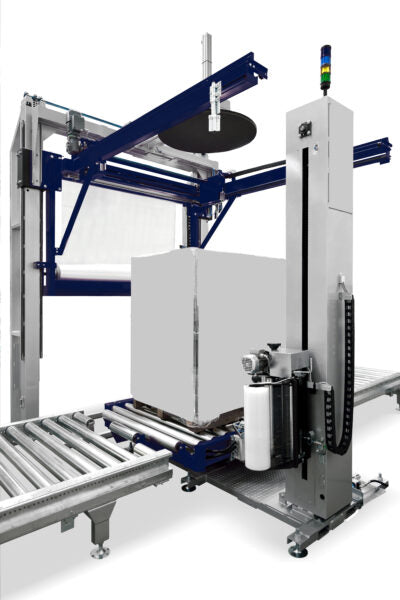

Stretch Wrapper: CST 935

The turntable stretch wrapper CST 935 can be easily integrated into an existing or new line. This fully automatic film wrapper is maintenance-friendly and uses a high pre-stretch percentage. This ensures that the total costs in your production line will decrease.

The CST 935 can wrap up to 35 pallets per hour and can handle loads up to 2000 kg. A corner applicator can be added to the machine for extra strenght of the pallet load.

Pre-stretch up to 450%!
Capacity up to 2000 kg
Can wrap up to 35 pallets per hour
Many options, including an anti-foil system

Are you looking for a pallet wrapping machine? With years of experience and expertise in the packaging industry, we are happy to advise you!

Not ready to buy yet? Talk to someone from our team

Technical Specification

Parameter	Value
Rotation speed (RPM)	11 11
Productivity (p/u)	35 35
Standard capacity	1200 kg 1200 kg
Min. pallet size (mm)	800x600 800x600
Max. pallet size (mm)	1200x1200 1200x1200
Min. - Max. pallet height (mm)	500 - 2100 500 - 2100
Line speed (m/min)	12-15-18 12-15-18
Power supply +/- 10%	400V, 50Hz, 3PH + N + PE 400V, 50Hz, 3PH + N + PE
Total power	3 kW 3 kW
Air consumption	6 Bar - ~50 Nl/cycle 6 Bar - ~50 Nl/cycle
