Traditional palletized packaging methods have issues such as high total investment costs, management difficulties, frequent loss, and damage. Ligotai has introduced several cost-effective pallet-free packaging devices, saving significant costs for building material production enterprises.

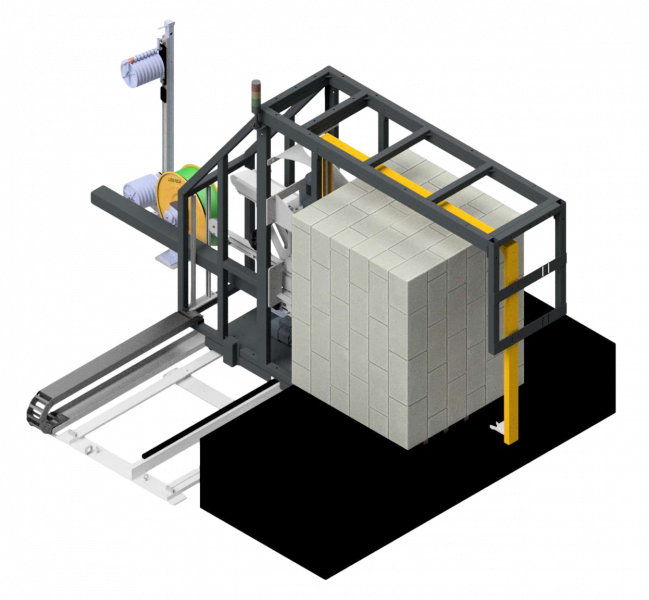

The main frame is composed of a sturdy steel structure, with the main colors being gray and yellow.
Uses a German Cyklop fully automatic high-frequency friction welding packing head.
The packing head has a travel range of up to 500mm, allowing better adherence to the product surface.
The packing head features a floating design, effectively balancing the tension on the four corners of the product, resulting in more balanced tension and more secure strapping.
Originating from the German modular design concept, the packing head can be maintained from multiple directions when maintenance or servicing is needed.
The strap channel is made of drawn aluminum alloy, with spring-loaded flaps on both sides, making strap feeding more convenient and efficient.
Equipped with a Chinese utility model patent sword device (patent number: ZL 2018 2 2007441.0), it completes actions such as sword insertion and strap feeding through a chain drive driven by a geared motor, which is efficient and durable. The equipped torque limiter ensures safer and more reliable operation.
The strap reel cart with brake facilitates quicker strap replacement and reasonable material supply.
The separate electrical control cabinet design allows for easier space adjustment and independent workstation allocation.
The entire machine control system uses a PLC and a color touch screen, and the control box is equipped with a cooling fan to better protect electrical components.
