Traditional pallet packaging methods have issues such as high total investment costs, management difficulties, frequent loss, and damage. Ligotai has introduced several cost-effective pallet-free packaging devices, saving significant costs for building material production enterprises.

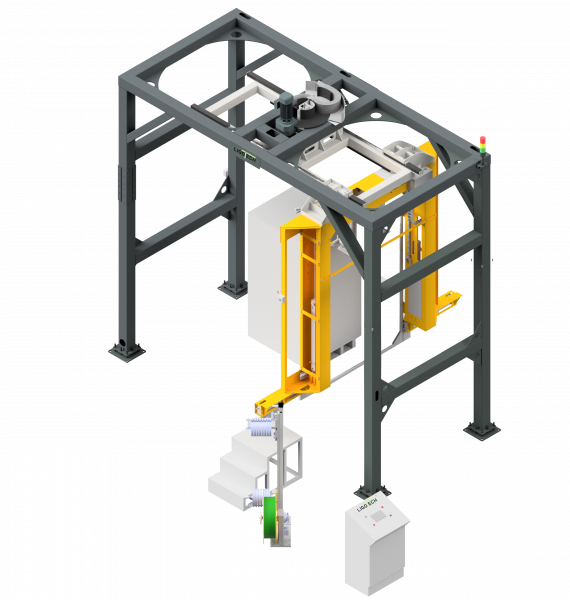

The main frame is composed of a sturdy steel structure, with the main colors being gray and yellow.
Uses German Cyklop fully automatic high-frequency friction welding packing head.
The packing head's movement range can reach 800mm, allowing better adherence to the product surface.
The packing head adopts a floating design, effectively balancing the tension on the four corners of the product, resulting in more balanced tension and more secure strapping.
Originating from the German modular design concept, the packing head can be maintained from multiple directions when maintenance or servicing is needed.
The strap channel is made of drawn aluminum alloy, with spring-loaded flaps on both sides, making strap feeding more convenient and efficient.
Driven by a bidirectional cylinder, the sword on both sides moves in coordination to complete the strapping, simple and elegant.
The standard strapping machine can move a distance of 2100mm, with other requirements customizable.
The strap reel cart with a brake facilitates quicker strap replacement and reasonable material supply.
The entire machine control system uses PLC and a color touch screen, and the control box is equipped with a cooling fan to better protect electrical components.
