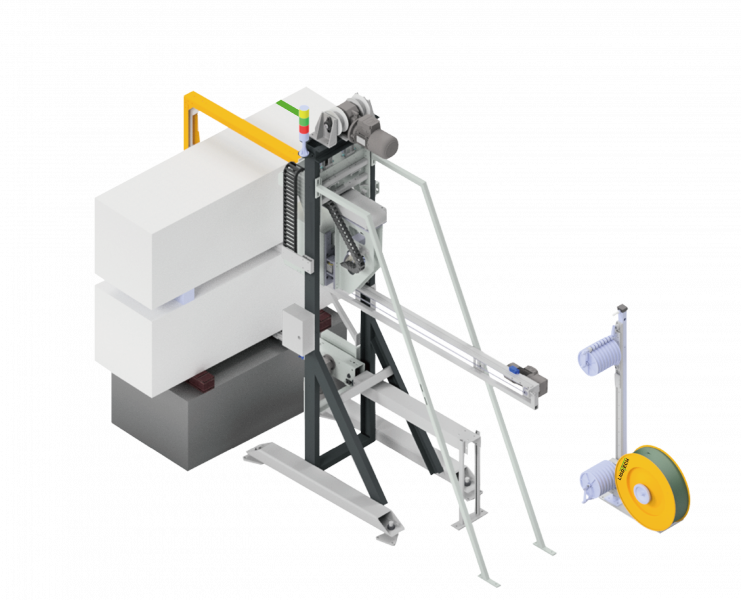

The LGP1210-ALC model is mainly designed for double-layer aerated panel packaging applications. It uses a single head that moves up and down for packaging, which can accommodate a total height of 1300mm for double-layer panels (including a 100mm high middle spacer). The strapping positions at the top and bottom are on the same horizontal line, precise and aesthetically pleasing.
The main frame is composed of a sturdy steel structure, with the main colors being gray and yellow.
Uses a German Cyklop fully automatic high-frequency friction welding strapping head.
The strapping head has a travel range of up to 300mm, allowing it to better conform to the product surface.
The strapping head features a floating design, effectively balancing the tension on the four corners of the product, resulting in more balanced tension and more secure strapping.
Originating from the German modular design concept, the strapping head can be maintained from multiple directions when maintenance or servicing is needed.
The strap channel is made of drawn aluminum alloy, with spring-loaded flaps on both sides, making strap feeding more convenient and efficient.
Equipped with a Chinese utility model patent sword-piercing device (patent number: ZL 2018 2 2007441.0), it completes actions such as sword piercing and strap feeding through a chain drive driven by a geared motor, efficient and durable, with a torque limiter to ensure safe and reliable use.
The strap reel cart with brake facilitates quicker strap replacement and reasonable material supply.
Integrated electrical control cabinet design, more compact and space-saving.
The entire machine control system uses PLC and a color touch screen, and the control box is equipped with a cooling fan to better protect electrical components.
Optional functions: automatic meter counting, remote control, interfacing with MES systems, modifying strapping positions, selecting appropriate strapping positions based on panel length, setting the distance between straps, and communicating with the production line master control station.
