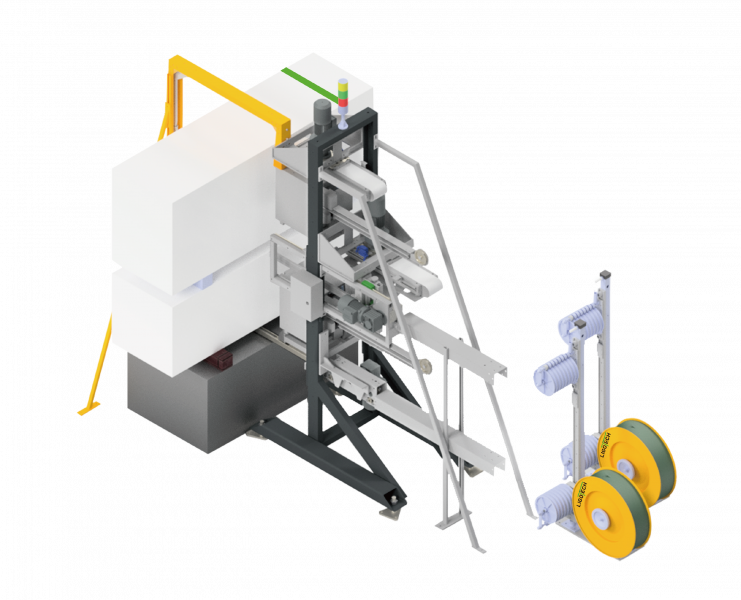

The LGP2210-ALC model is mainly designed for the application needs of simultaneously packing double-layer aerated panels. It allows for convenient switching between different heights of 600-800mm single-layer panels. When the height of double-layer panels reaches 1200mm-1600mm, strapping can be performed simultaneously, with the upper and lower strapping positions on the same horizontal line, ensuring precise and more aesthetically pleasing positioning.
The main frame is composed of a sturdy steel structure, with the main colors being gray and yellow.
It uses a German Cyklop fully automatic high-frequency friction welding strapping head.
The strapping head has a travel range of up to 300mm, allowing it to better conform to the product surface.
The strapping head features a floating design, effectively balancing the tension on the four corners of the product, resulting in more balanced tension and more secure strapping.
Originating from the German modular design concept, the strapping head can be maintained from multiple directions when maintenance or servicing is required.
The strap channel is made of drawn aluminum alloy, with spring-loaded flaps on both sides, making strap feeding more convenient and efficient.
Equipped with a Chinese utility model patent sword-piercing device (patent number: ZL 2018 2 2007441.0), it completes actions such as sword piercing and strap feeding through a chain drive driven by a geared motor, which is efficient and durable. The equipped torque limiter ensures safer and more reliable operation.
The strap reel cart with brake facilitates quicker strap replacement and reasonable material supply.
The integrated electrical control cabinet design is more compact, saving workspace and facilitating operation.
The entire machine control system uses PLC and a color touch screen, and the control box is equipped with a cooling fan to better protect electrical components.
Optional functions: automatic meter counting, remote control, interfacing with MES systems, modifying strapping positions, selecting appropriate strapping positions based on panel length, setting the distance between straps, and communicating with the production line's main control console.
