Pallet wrapper: CSA 150 AA

Pallet wrapper: CSA 150 AA

Pallet wrapper: CSA 150 AA

Pallet wrapper: CSA 150 AA

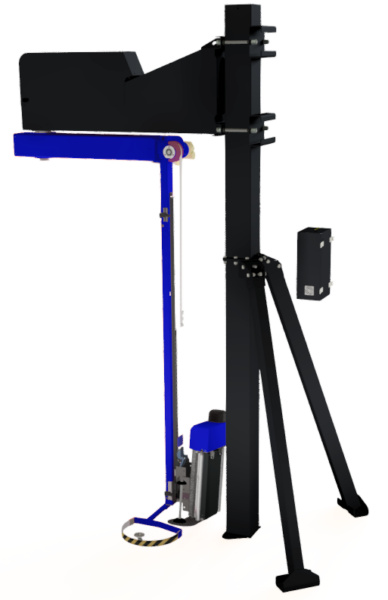

The pallet wrapper CSA 150 AA is an arm wrapper where the load remains stable on the ground while the film carriage rotates around the load. The machine is very suitable for use in environments that are intensively cleaned, such as in the food industry, because this wrapper has much less floor contact than a turntable wrapper.

The arm wrapper operates fully automatically and is equipped with a film clamp and cutting unit.

  • Extremely suitable for heavy and/or unstable loads
  • Low packaging costs due to 250% pre-stretch
  • Efficient and hygienic operation

Are you looking for a pallet wrapper or film wrapping machine? With years of experience and expertise in the packaging industry, we are happy to advise you!

Cyklop
211255

Request a Quote
Not ready to buy yet? Talk to someone from our team
View full details
Technical Specification
Parameter Value
Type Arm wrapper
Dimensions HxWxD 3540 x 2860 x 3160 mm
Wrapping speed Maximum 18 rpm
Capacity 25 pallets per hour
Max pallet (HxWxD) 2400 x 1000 x 1200 mm

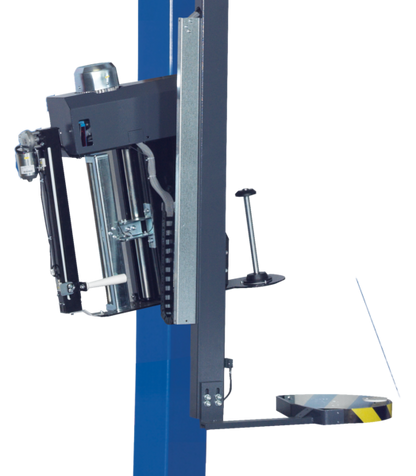

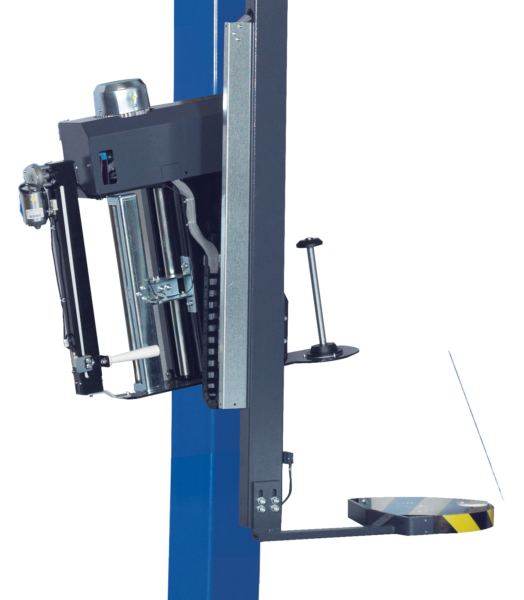

Film carriage Motorized pre-stretch 250%, Foil clamp and cutting unit, Photocell for height detection
Wrapping programs Memory for 32 programs
Protection IP54
Weight 600 Kg
Power supply 230 V / 1.5 KW
