Robot Wrapper: CSM 255

Name: Robot Wrapper: CSM 255
Brand: Cyklop
Availability: InStock

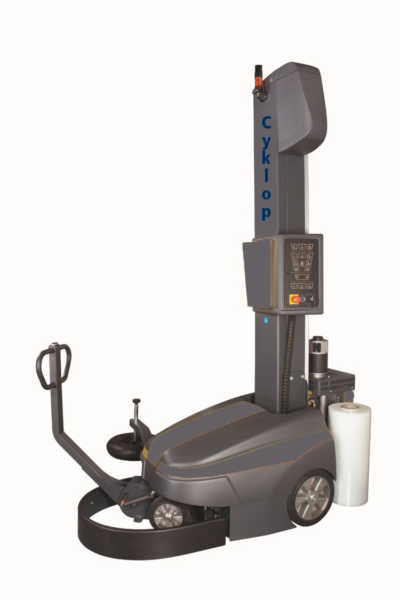

Robot wrapper with pre-stretch system

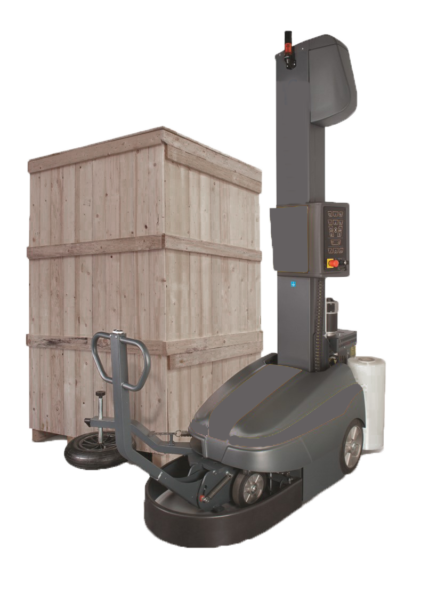

The pallet wrapper CSM 255 is a flexibly deployable mobile film wrapper with a pre-stretch system. By means of a handle with control buttons, the wrapper can be moved to any desired location. Due to its flexible nature, the wrapper can handle any package size. The wrapper is suitable for heavy objects and loads with large dimensions.

The CSM 255 is equipped with a digital control panel that allows the user to easily and functionally change various settings and set custom wrapping cycle programs. The CSM 255 pre-stretches the film (up to 240%) through a motorized pre-stretch system. On a single battery charge, the machine can wrap up to 200 pallets and after 10 minutes of inactivity, the machine automatically shuts off. This makes the CSM 255 low in energy consumption.

Cost-saving due to pre-stretch on wrapping film
The mobile wrapper provides the ability to wrap in multiple spaces
Easily wrap large, heavy packages

Request a Quote

Not ready to buy yet? Talk to someone from our team

View full details

Technical Specification

Parameter	Value
Maximum pallet height	2100 mm (2600 & 2800 mm option) 2100 mm (2600 & 2800 mm option)
Minimum pallet size	400 x 500 mm 400 x 500 mm
Maximum pallet size	6.000 x 7.000 mm 6.000 x 7.000 mm
Minimum pallet weight	20 - 55 kg (depending on wrapping film) 20 - 55 kg (depending on wrapping film)
Battery	87Ah AGM,status on display 87Ah AGM,status on display
Charger	20Ah charger 20Ah charger
Power supply	100 - 240 V 100 - 240 V
Rotation speed	50 - 80 m/min 50 - 80 m/min
Maximum noise	72.0 dB(A) 72.0 dB(A)
Ambient temperature	5 – 40°C 5 – 40°C
Film roll characteristics	Width 500 mm, Outer diameter 250 mm, Core diameter 76 mm
Wrapping film	Weight 17 kg, Total 23 microns Weight 17 kg, Total 23 microns
