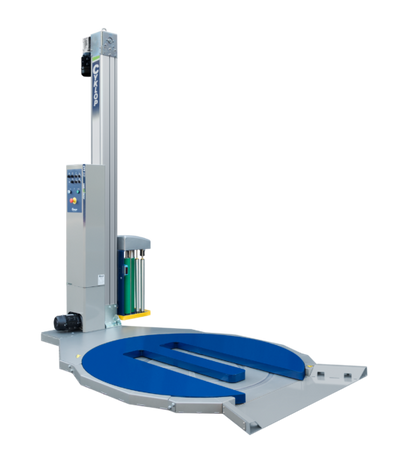

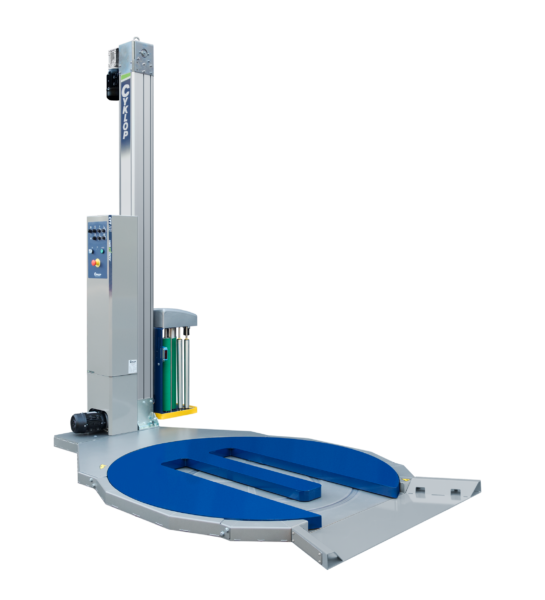

Stretch Film Machine: CTT 210 HS

CTT 210 HS is a stretch film machine with a horse shoe turntable that simplifies loading pallets with a pallet lift. The machine stands out for its simplicity and speed. The operator only needs to place the pallet on the turntable, select the desired stretch film program, and cut the film when the film cycle is complete. The machine offers efficient load securing and minimizes film consumption. The unique ability to adjust the film's pre-stretch makes CTT 210 HS ideal for handling irregular pallet loads.

CTT 210 HS is developed and manufactured in our factory in Sweden.

Easy and fast to use
Film pre-stretch: 80%, 145%, 230%
Rotation speed: 12 RPM
5 standard programs + 1 manual
Very suitable for stretch wrapping irregular goods
Cost-effective

Options:

Extended mast for higher goods
Top plate
Ramp (for manual pallet truck)

Not ready to buy yet? Talk to someone from our team

Technical Specification

Parameter	Value
Machine: Table Diameter	Ø1650 mm Ø1650 mm
Machine: Turntable Speed	Max 12 RPM Max 12 RPM
Machine: Motor Control	Frequency controlled,with PLC Frequency controlled,with PLC
Machine: Stretch Film Unit Speed	Adjustable Adjustable
Machine: Pre-stretch System	Power Ecostretch+ Power Ecostretch+
Machine: Pre-stretch Level	Up to 230% Up to 230%
Machine: Stretch Wrapping Program	5 standard,1 optional 5 standard,1 optional
Power	Single-phase 200-240V / 50-60Hz / 10A IP54
Goods: Max. Size (length x width)	1200 x 1000 mm 1200 x 1000 mm
Goods: Max. Height incl. Pallet	2200 mm 2200 mm
Goods: Max. Weight	2000 kg 2000 kg
Stretch Film	Core: 76 mm, Outer diameter: 250 mm, Length: 500 mm
Stretch Film: Film Thickness	9-35 my 9-35 my
