CSO 600

CSO 600

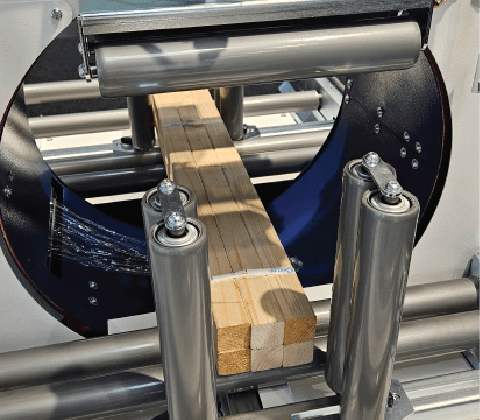

The CSO 600 horizontal stretch wrapper is a high-speed automatic wrapping machine designed for efficiently packaging medium-sized and long products such as tubing, profiles, furniture components, and bundled items. Built for demanding manufacturing, logistics, and packaging environments, the CSO 600 features a robust frame, high-performance ring system, and fully automated wrap cycle with automatic film clamping, cutting, and restart for continuous operation.

Its ability to integrate seamlessly into existing conveyor systems makes it an ideal solution for high-throughput facilities seeking reliable, secure, and consistent industrial packaging solutions.

Benefits:

  • High Speed Performance

  • No Manual Intervention

  • Speeds up the Overall process

  • Minimal Operator Interaction

  • Perfect Results with each product

  • Supports Streamlined Operations and Maximiszes throughput

  • Enhances Efficiency

  • Maintains Ease of Use

View full details
Technical Specification
Parameter Value
Ring Inside Diameter 600 mm
Ring Max Speed 120 RPM
Film Width 125 mm
Film Core Diameter 76 mm
Max Film Roll Diameter 230 mm
Power Supply 230V, Single-phase
Air Supply 6 bar for pneumatic
Conveyors Infeed/Outfeed Powered
Conveyors 625 mm each
Photocells For Start/Stop Cycle
Electrical Box With Dedicated Board
Safety Reset Safety Button
Emergency Stop Button
Brochures & Download Materials
Service Videos
Product Videos
More Information

Features

  • Wraps Large Volumes of Products
  • Automated Film Clamping and Cutting
  • Controlled by Frequency Changer for Smooth Operation
  • Tightly Secured Product with Minimal Effort
  • Fully Automated Wrap Cycle
  • Fully Automatic
  • Pneumatic side guides hold the product in place
  • Seemless Conveyor Integration

Optional Components

• Option for working with Stretch film size 250 mm
