CT 403

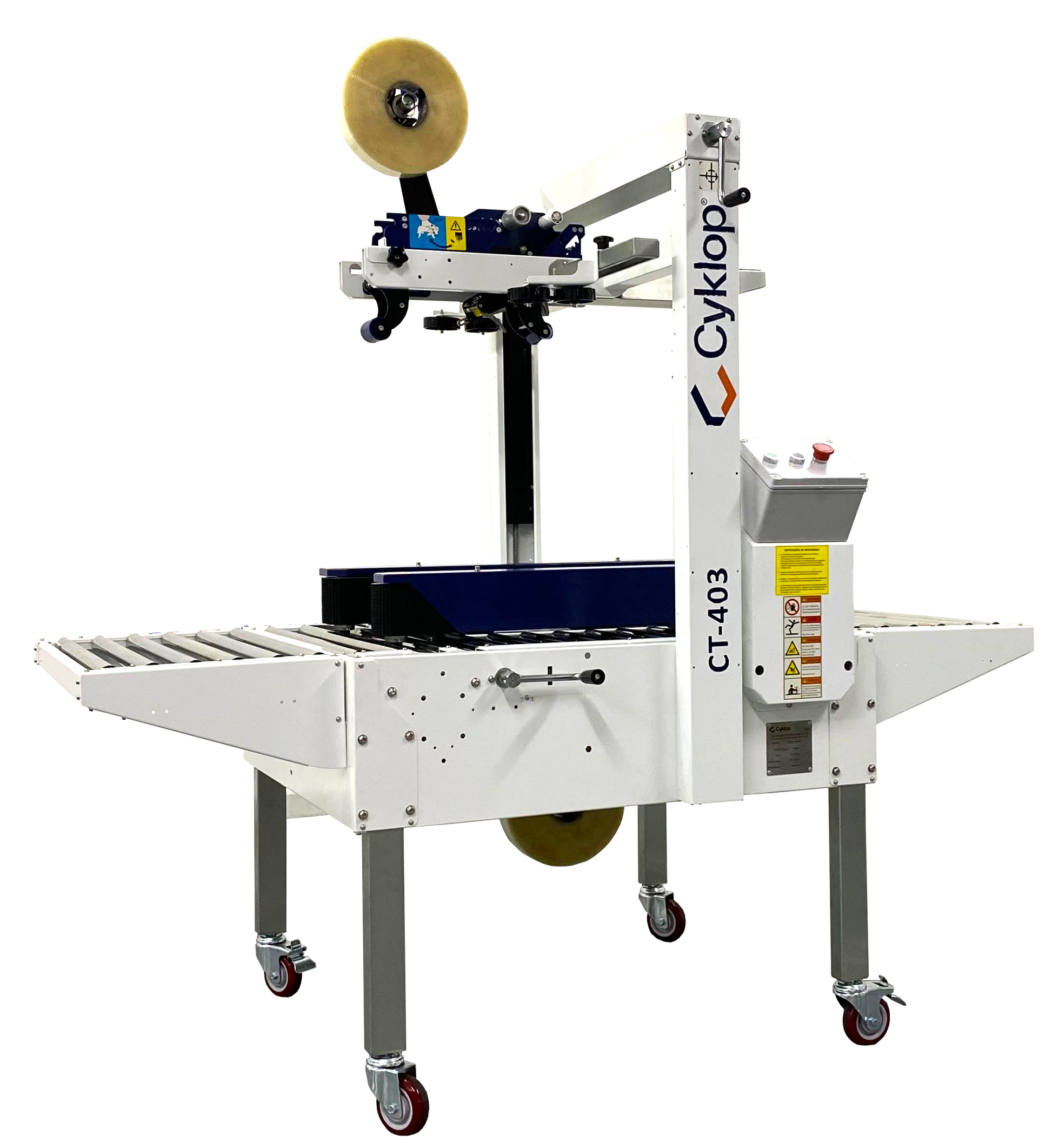

The CT 403 SD semi-automatic case sealer is a versatile box sealing machine built to increase productivity and efficiency in modern packaging operations, warehouses, and distribution centers. Featuring side-driven belts, adjustable handwheels for multiple box sizes, and advanced top and bottom tape heads, it delivers fast, reliable sealing using paper or PVC adhesive tape. Its compact design, simple operation, and wide range of optional conveyors and accessories allow the CT 403 SD to integrate seamlessly into customized packing stations, making it an ideal carton sealing solution for high-performance shipping and packaging environments.

Benefits:

Simple operation: Easily operable by any staff member
Compact: Takes up minimal space, making it perfect for smaller production facilities.

Not ready to buy yet? Talk to someone from our team

Technical Specification

Parameter	Value
Sealing	Top & Bottom or Only Top by TU Smart Top & Bottom or Only Top by TU Smart
Sealing by Tape	PVC & Paper Adhesive tape W: 50 mm (optional 25, 75, or 100 mm)
Box Length (mm)	150 - infinitive 150 - infinitive
Box Width (mm)	CT 403 SD: 100 – 510 CT 403 SD 65: 120 – 660
Box Height (mm)	CT 403 SD: 130 – 510 CT 403 SD 65: 130 – 660
Performance	Up to 1,200 boxes per hour Up to 1,200 boxes per hour
Air Compressed/ Consumption	n/a n/a
Belts Transmission	CT 403 SD: 24 mt/min, height 65 mm CT 403 SD 65: 24 mt/min, height 90 mm
Noise Level	71.8 db 71.8 db
Power Supply	220 V/50Hz, 110V/60HZ, 1-ph, 0.18 kW 220 V/50Hz, 110V/60HZ, 1-ph, 0.18 kW
Electrical Protection Rate	IP54 IP54
Conveyor Height (mm)	650 650
