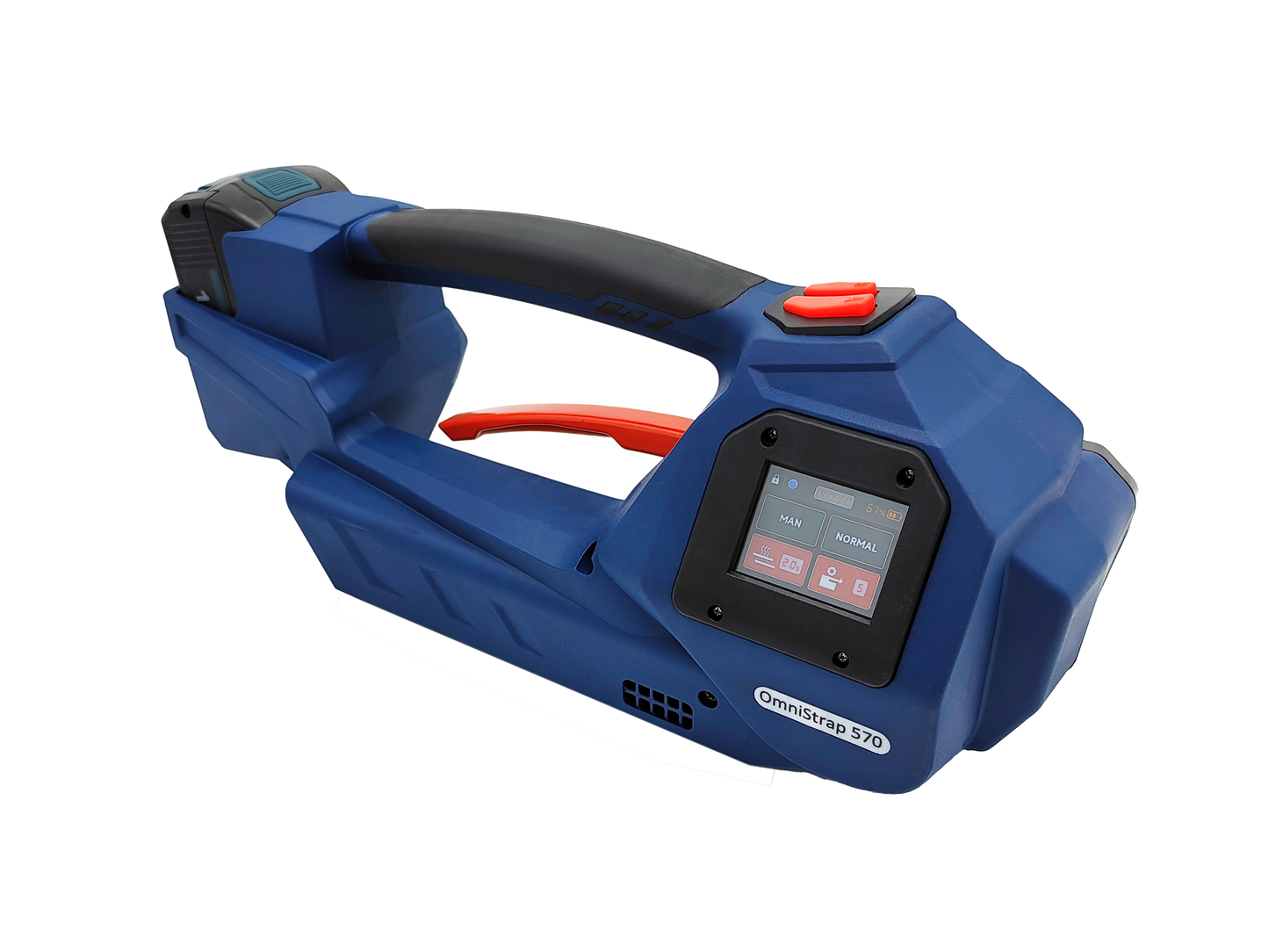

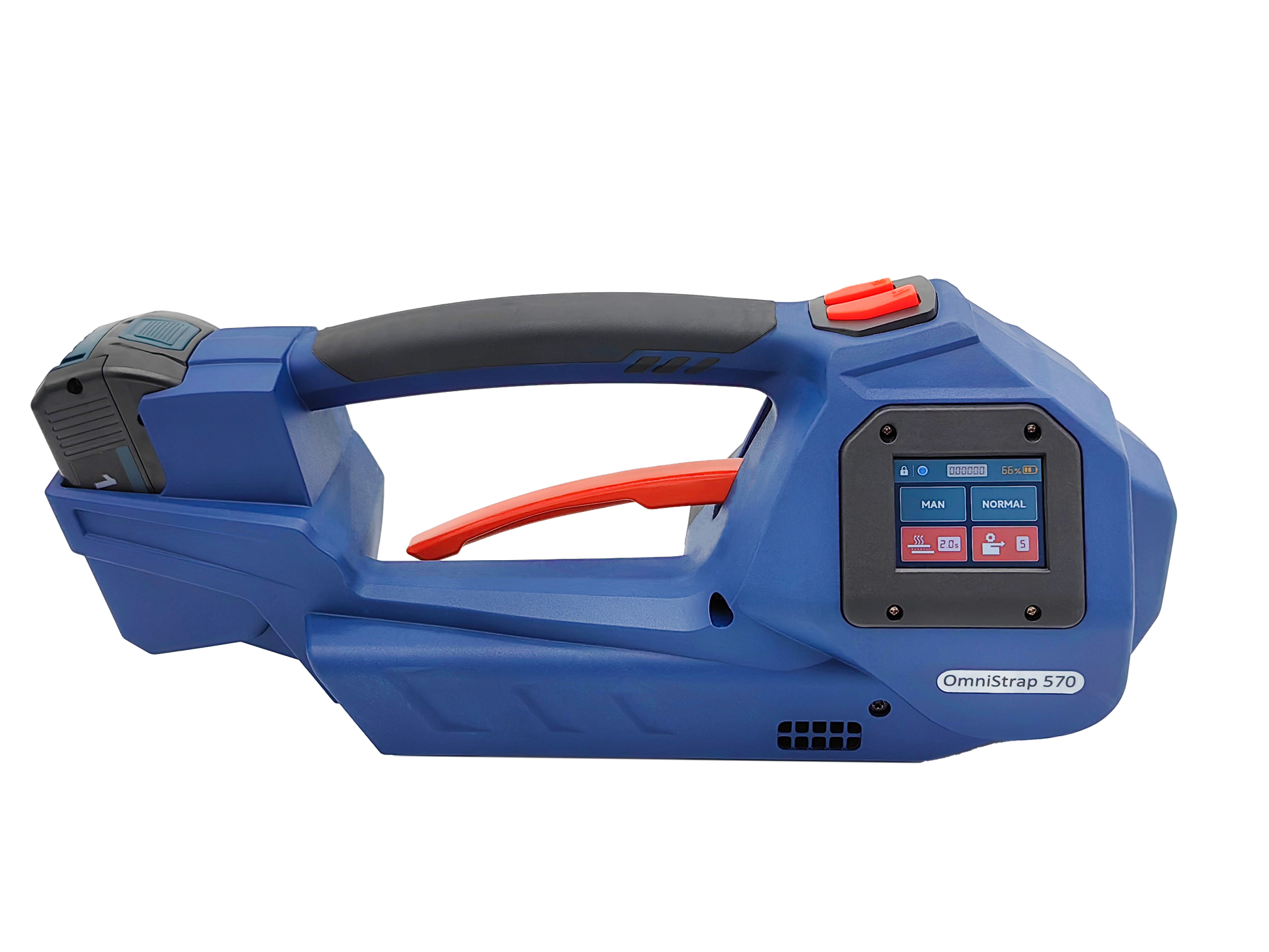

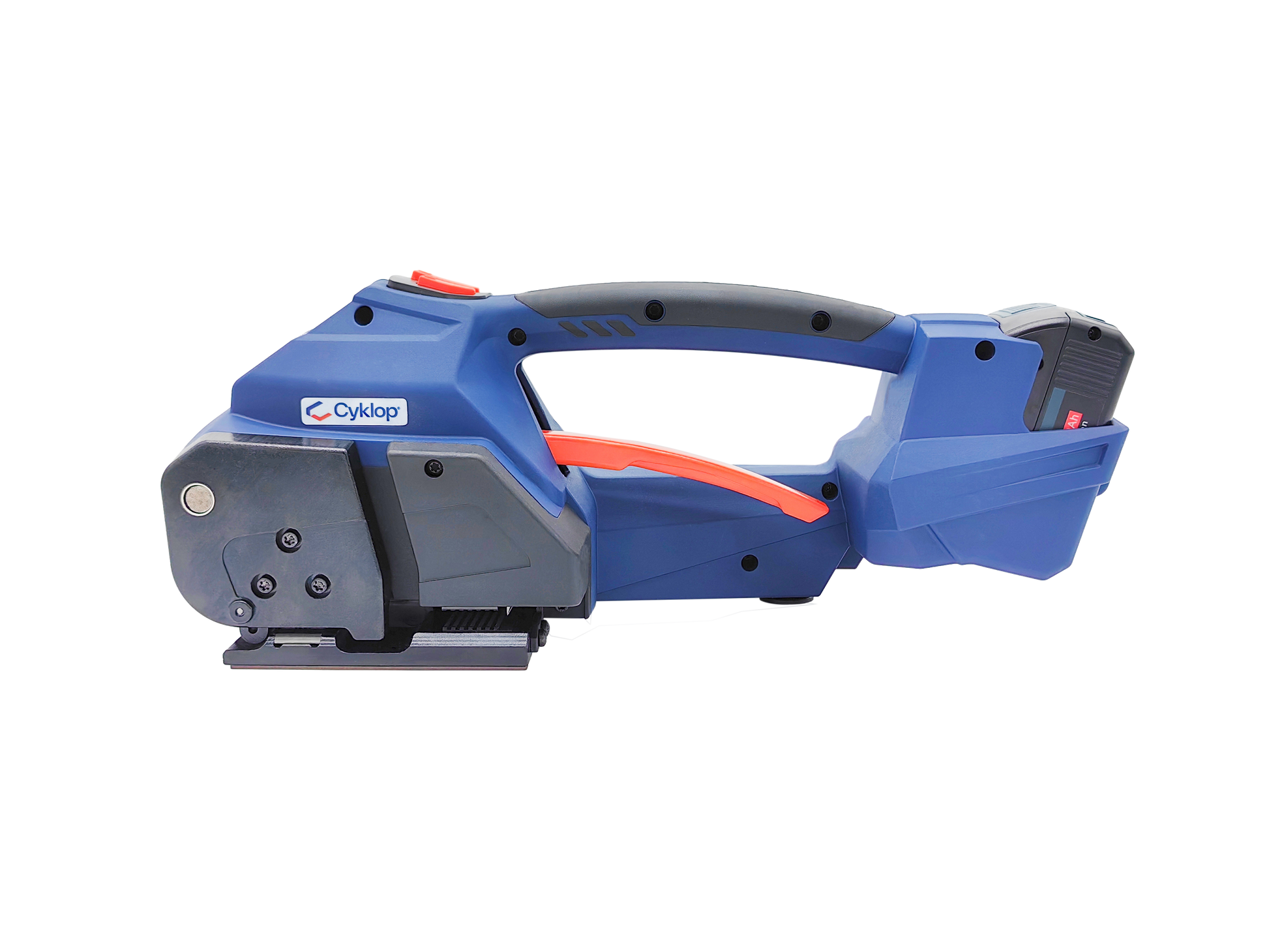

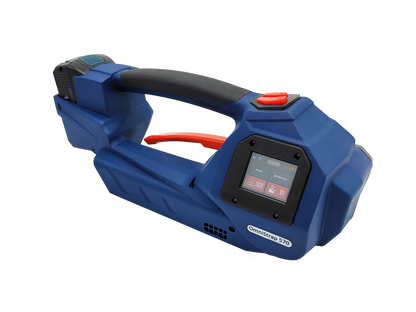

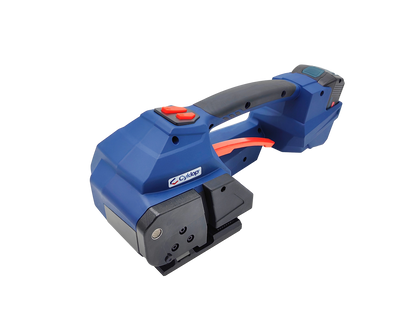

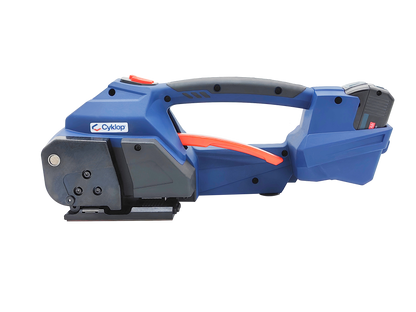

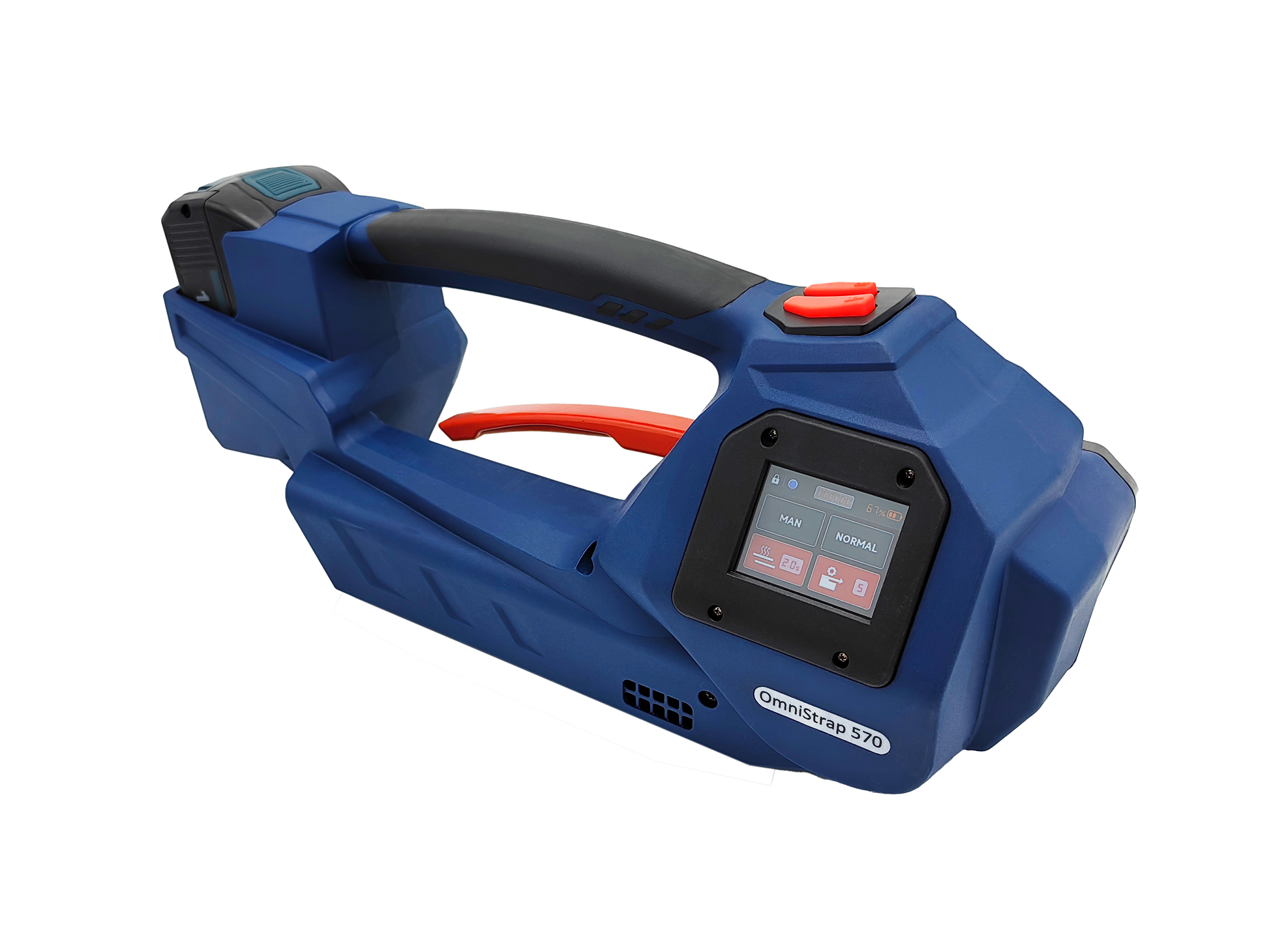

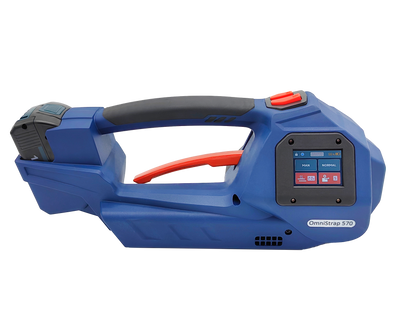

OmniStrap 570

OmniStrap 570

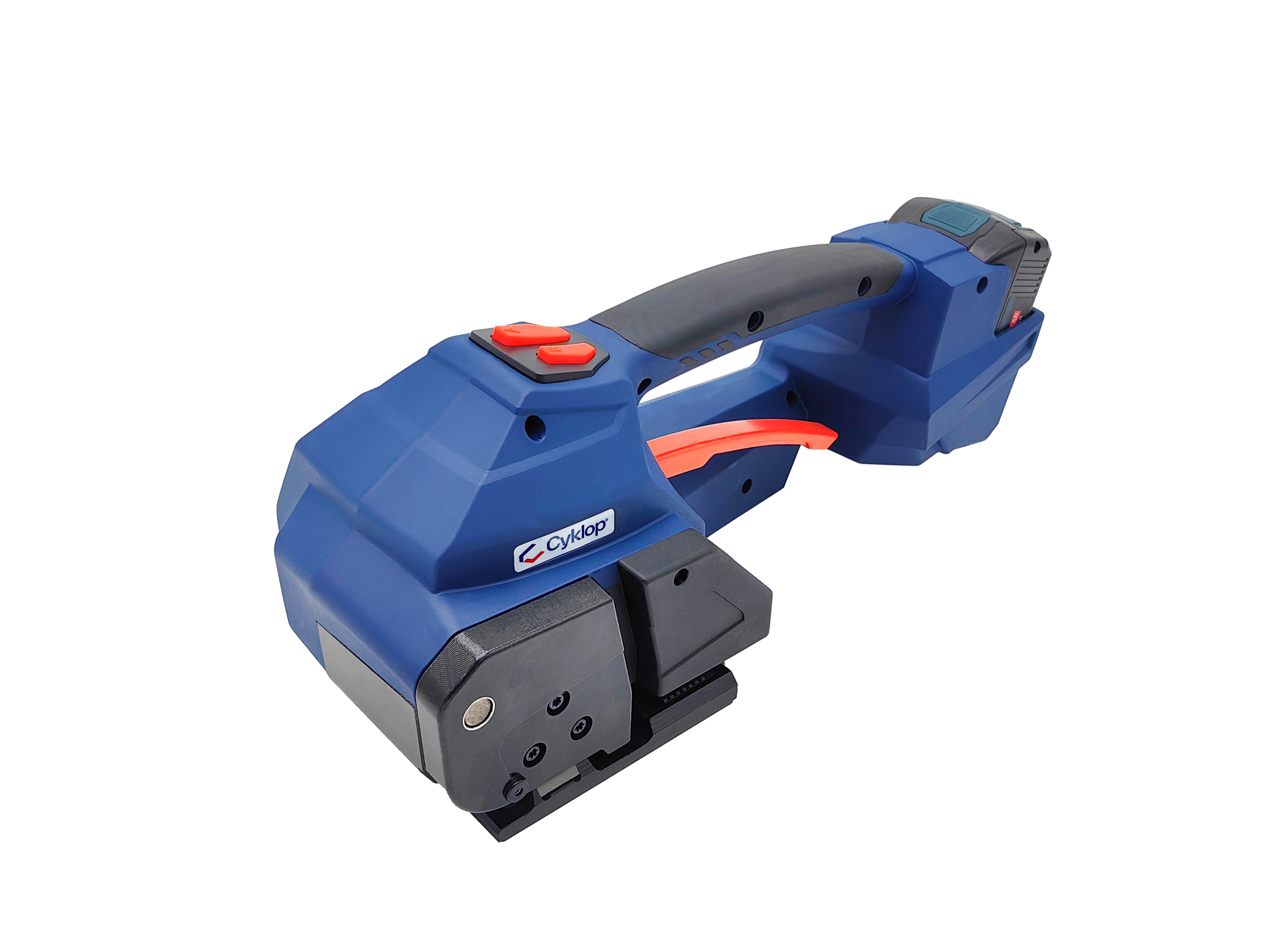

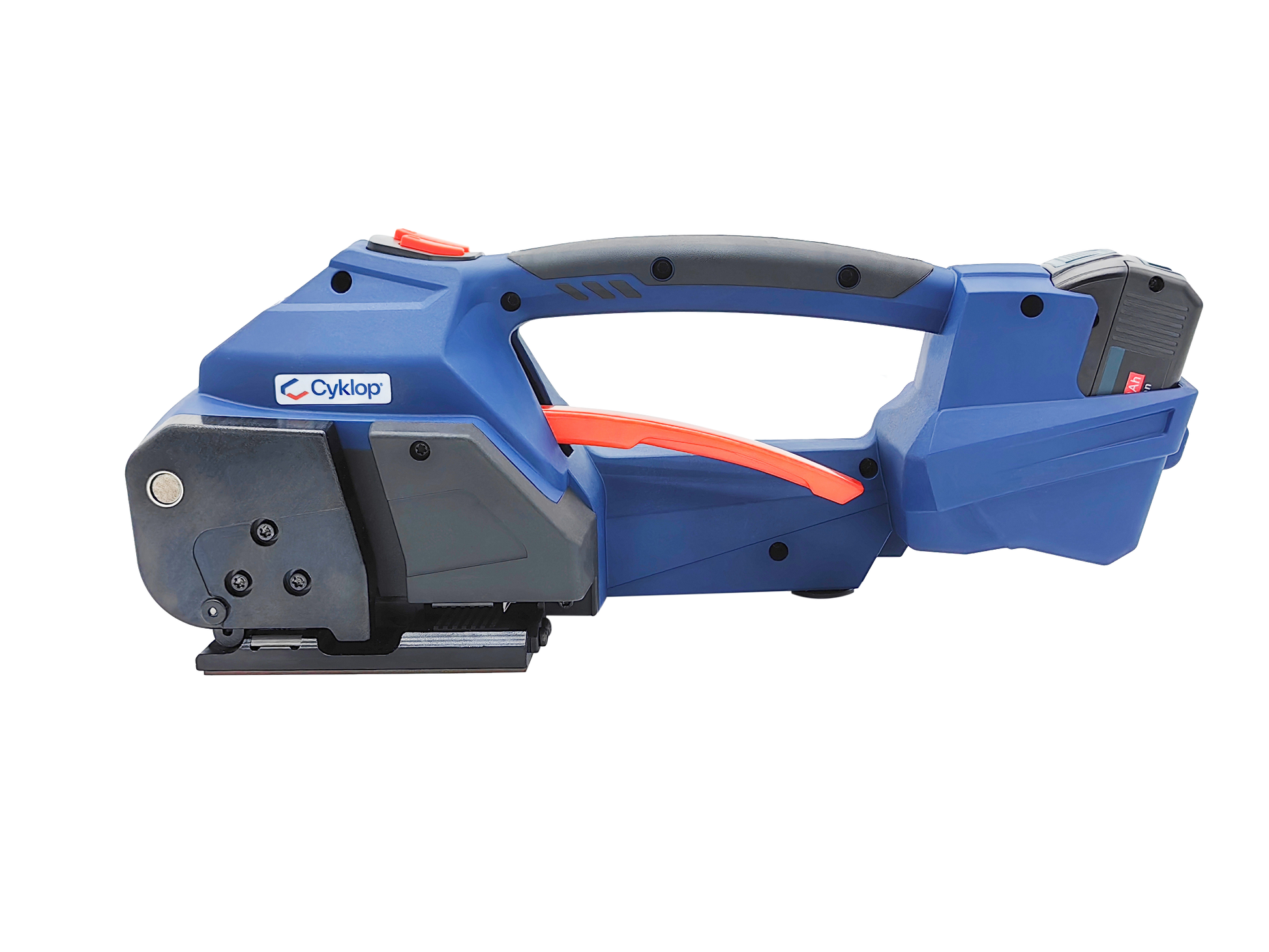

The Cyklop OmniStrap 570 is a high-performance, battery-powered strapping tool engineered for heavy-duty and high-tension applications where maximum load stability, high tension force and reliable sealing are essential.

It combines tensioning, friction-weld sealing and strap cutting in one efficient handheld tool. With an adjustable tension force of up to 7,000 N, the OmniStrap 570 delivers consistent, repeatable performance for securing heavy palletized loads in demanding industrial environments.

Designed for 19–25 mm PET and PP strapping, the OmniStrap 570 provides outstanding reliability across a wide range of heavy industrial applications. Its robust, impact-resistant construction is built to withstand dust, moisture and intensive daily use, while the cordless battery-powered design gives operators maximum flexibility wherever strapping is required.

The integrated memory function allows users to store up to five preset programs, enabling faster setup, consistent operation and increased productivity across different applications.

  • High-Tension Performance – Delivers up to 7,000 N of adjustable tension force for demanding industrial applications.

  • All-in-One Operation – Tensions, friction welds and cuts the strap with a single handheld tool.

  • Heavy-Duty Industrial Design – Engineered for intensive use in challenging industrial environments.

  • Maximum Mobility – Cordless battery-powered operation allows unrestricted use throughout the workplace.

  • Consistent Performance – Five programmable presets reduce setup time and ensure repeatable strapping quality.

  • Extended Battery Runtime – More strapping cycles per battery charge for increased productivity.

  • Durable Construction – Impact-, dust- and moisture-resistant housing designed for long service life.

  • Optional Suspension Hook – Available for use with a balancer, reducing operator fatigue during repetitive strapping operations.

View full details
Technical Specification
Parameter Value
Strap PP (Polypropylene)
PET (Polyester)
Strap width 19 – 25 mm
Strap thickness 0.6 - 1.3 mm
Welding time 0.5 - 4 s
Tension force 400 - 7000 N
Tension speed >200 mm/s
Weight 4.9 kg tool body
0.62 kg battery
Dimensions mm L 420 x W 166 x H 165
Strapping cycles per charge PP - 400
PET - 300
Battery 18V 5000 mAh
Brochures & Download Materials
Service Videos
Product Videos
More Information

Features

• Touch display
• Five programmable memory presets
• Strap alignment guides
• Adjustable welding time
• Adjustable tension force
• Variable tensioning speed
• Visual tension indicator
• Low-tension mode
• Suitable for PP and PET strapping
• Visual and audible operating signals
• Impact-, dust- and moisture-resistant construction
• Optional suspension hook for balancer

Typical Applications

• Steel and metal products
• Timber and wood products
• Building materials
• Bricks and tiles
• Heavy machinery and equipment
• Heavy paper and board applications
• Industrial manufacturing
• Export packaging
• Heavy palletized loads requiring high tension and maximum load stability
