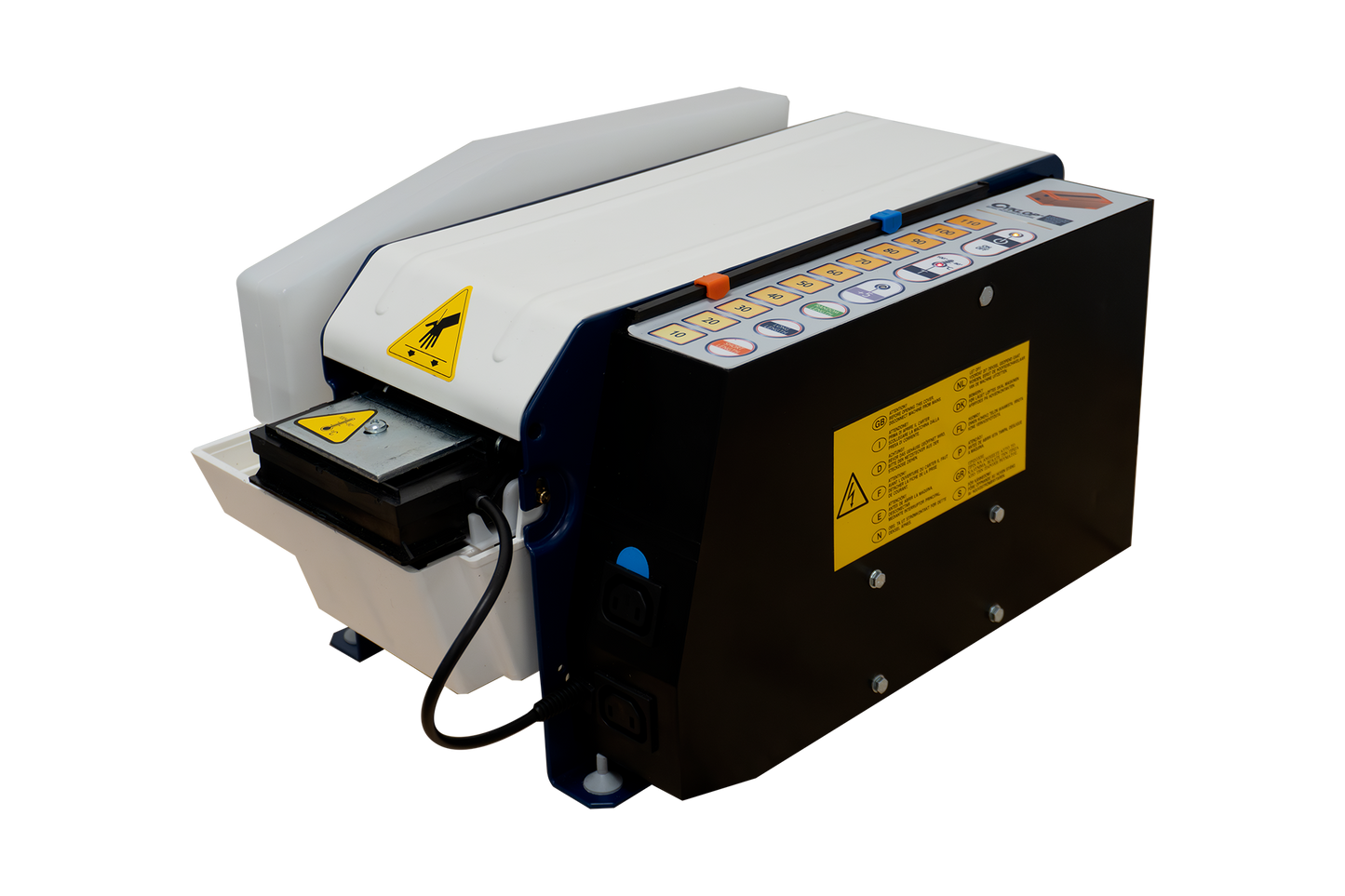

纸带分配器：Lapomatic 2.0

Name: 纸带分配器：Lapomatic 2.0
Brand: Cyklop
Availability: OutOfStock

用于连续使用的纸带分配器

LAPOMATIC 2.0 纸带分配器是一种用于胶合纸胶带的电子胶带分配器。专为连续使用而设计，非常可靠、安静且用户友好。易腐蚀部件均喷漆或镀锌，以确保较长的工作寿命。

技术规格

Parameter	Value
Length(L)	450 mm 450 mm
Width (W / W1)	295/265 mm 295/265 mm
Height (H / H1)	240/225 mm 240/225 mm
Weight (no load)	11.5 kg 11.5 kg
Power consumption	84 W 84 W
Auxiliary circuits voltage	24 V DC 24 V DC
Tape dispensing speed	55 m/min 55 m/min
Tape cutting length	100 ÷ 2100 mm 100 ÷ 2100 mm
Tape cutting length	4 ÷ 82.5 in 4 ÷ 82.5 in
Type	All All
Width	20 ÷ 100 mm 20 ÷ 100 mm
Max. diameter	200 mm 200 mm
Width	0.8 ÷ 4 in 0.8 ÷ 4 in
Diameter	7 in 7 in
Maximum operating altitude(a.s.l.)	1500 m 1500 m
Relative humidity (at a temperature of 20°C÷40°C)	20% + 90% 20% + 90%
Ambient operating temperature	-5 ÷ +40 °C -5 ÷ +40 °C
Noise level	<70 dB (A) <70 dB (A)

服务视频

产品视频

更多信息

Features

Double foot switch
Two push button keys program lengths for "H" box sealing to use with 2 pedals. This allows the same machine to be used by 2 operators.
Maximum roll width 100 mm
100 mm tape width allows you to close very heavy and bulky packages, ensuring the integrity of the shipment.
Robust corrosion-resistant construction
Metal construction allows the machine to remain firmly stable on the surface.
All parts susceptible to corrosion are painted or galvanized to ensure a long working life.
Waterproof 'Soft Touch' Keyboard
The keyboard has 22 keys for preset measurements with a +5 cm (2" ) key.

Optional Components

External lines connections
The machine can receive a signal so it can be used on automatic packaging lines. The same outputs can also be used for foot switches.
Battery Operated
The Lapomatic battery allows you to work anywhere, plug-free! The durable Li-Ion battery is good for 6,000 operations. Recharge the battery at the end of the work shift.
Photocell
The Lapomatic F works as, either a dispenser for gummed tape, or a labeling machine
Random option available
Adjustable tape output delay
4 wheel trolley for freedom of movement and mobility. You can use the machine in all places in your warehouse.
