Stretch Film Machine: CTT 230 HS

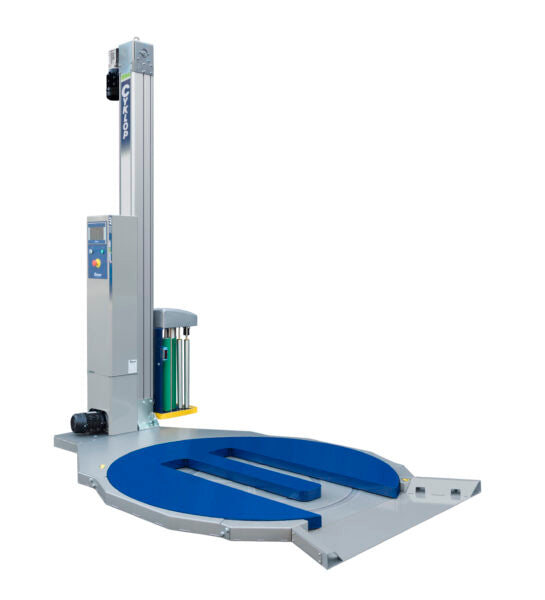

CTT 230 HS is a stretch film machine with a horse shoe turntable that facilitates loading of pallets with a pallet jack. The machine is both simple and fast to use. The operator places the pallet on the turntable, sets the desired film program, and cuts the film when the pallet is fully wrapped. The machine is equipped with our unique pre-stretch system, Power Ecostretch, which can stretch the film up to 300%. This system ensures excellent load securing and contributes to low material costs.

CTT 230 is developed and manufactured in our factory in Sweden.

Simple and fast to use
Pre-stretch: 30-300%, adjustable
Rotation speed: 12 RPM
Extremely suitable for wrapping irregular pallet goods
Cost-effective

Options:

Extended mast for higher goods
Ramp (for manual pallet truck)
Integrated scale in the turntable
Top plate
More options on request

Not ready to buy yet? Talk to someone from our team

Technical Specification

Parameter	Value
Machine: Table Diameter	Ø1650 mm Ø1650 mm
Max. Pallet Size (LxWxH)	1,200 x 1,000 x 2,200 mm 1,200 x 1,000 x 2,200 mm
Max. Pallet Weight	2,000 kg 2,000 kg
Machine: Speed	Up to 12 RPM Up to 12 RPM
Machine: Pre-stretch System	Power Ecostretch Power Ecostretch
Machine: Pre-stretch Ratio	30% - 300% 30% - 300%
Machine: Stretch Wrapping Program	4 adjustable programs 4 adjustable programs
Power	1-phase 200-240 V / 50-60 Hz / 10 A 1-phase 200-240 V / 50-60 Hz / 10 A
Stretch Film	Core: 76 mm, Outer Diameter: 250 mm, Width: 500 mm
Stretch Film: Film Thickness	9-35 my 9-35 my
Noise Level	<70 dB(A) (cast film,9 rounds/min) <70 dB(A) (cast film,9 rounds/min)
Temperature Range	+5°C to +35°C in a dry temperate environment
