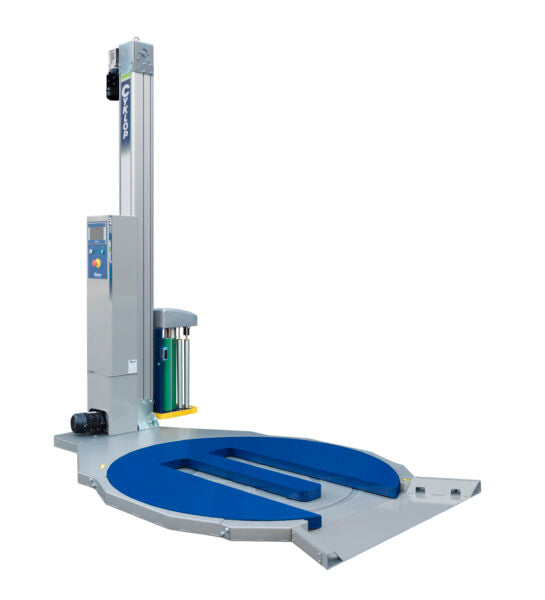

STRETCH FILM MACHINE: CTT 300 HS

CTT 300 HS, with its 400% pre-stretch, high capacity, and integrated cutting unit, is the solution for time-saving pallet wrapping. Through time savings, automatic control, high pre-stretch, and low maintenance, the machine provides the lowest stretch wrapping cost per pallet. The horseshoe turntable makes it easier to load pallets with a pallet jack.

CTT 300 HS is developed and manufactured in our factory in Sweden.

Easy to load pallets with a pallet jack

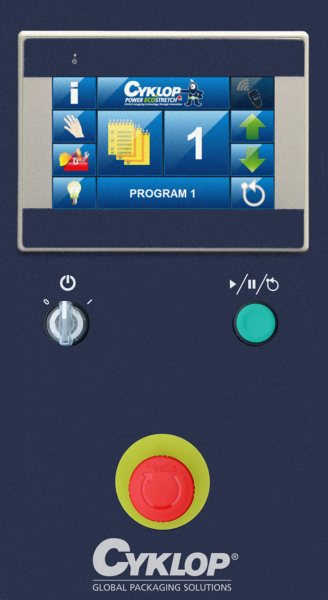

User-friendly control panel
Full control over speed and film application
Power Eco Stretch pre-stretch unit

Options:

Extended mast for higher goods
Ramp (for manual forklift)
Integrated scale in the turntable
Top plate
More options upon request

Not ready to buy yet? Talk to someone from our team

Technical Specification

Parameter	Value
Machine: Table Diameter	Ø1650 mm Ø1650 mm
Machine: Turntable Speed	Max 12 rpm,adjustable Max 12 rpm,adjustable
Machine: Motor Control	Electronically operated,with PLC Electronically operated,with PLC
Machine: Vertical Speed	Adjustable Adjustable
Machine: Pre-stretch System	Power Ecostretch Power Ecostretch
Machine: Pre-stretch Ratio	30%,60%,80%,110%,145%,200%,250%,or 300%,adjustable
Machine: Stretch Wrapping Program	5 standard,1 optional 5 standard,1 optional
Power	1-phase 240V / 50 Hz / 10 A 1-phase 240V / 50 Hz / 10 A
Goods: Max. Size (length x width)	1200 x 1000 mm 1200 x 1000 mm
Goods: Max. Height incl. Pallet	2200 mm 2200 mm
Goods: Max. Weight	2000 kg 2000 kg
Stretch Film	Core 76 mm, Outer diameter 250 mm, Length 500 mm
Stretch Film: Film Thickness	9-35 µm 9-35 µm
Noise Level	<70 dB(A) (cast film,9 rpm) <70 dB(A) (cast film,9 rpm)
Temperature Range	+5°C to +35°C in a dry tempered environment
