With its expanded part-size capabilities, the Neutro Lase is perfectly suited for a wide range of industrial applications, unlocking new opportunities for your business. Proudly designed, engineered, and built in the UK, addressing the specific challenges and requirements businesses face.



Key Differentiators & Benefits


High specification features as standard

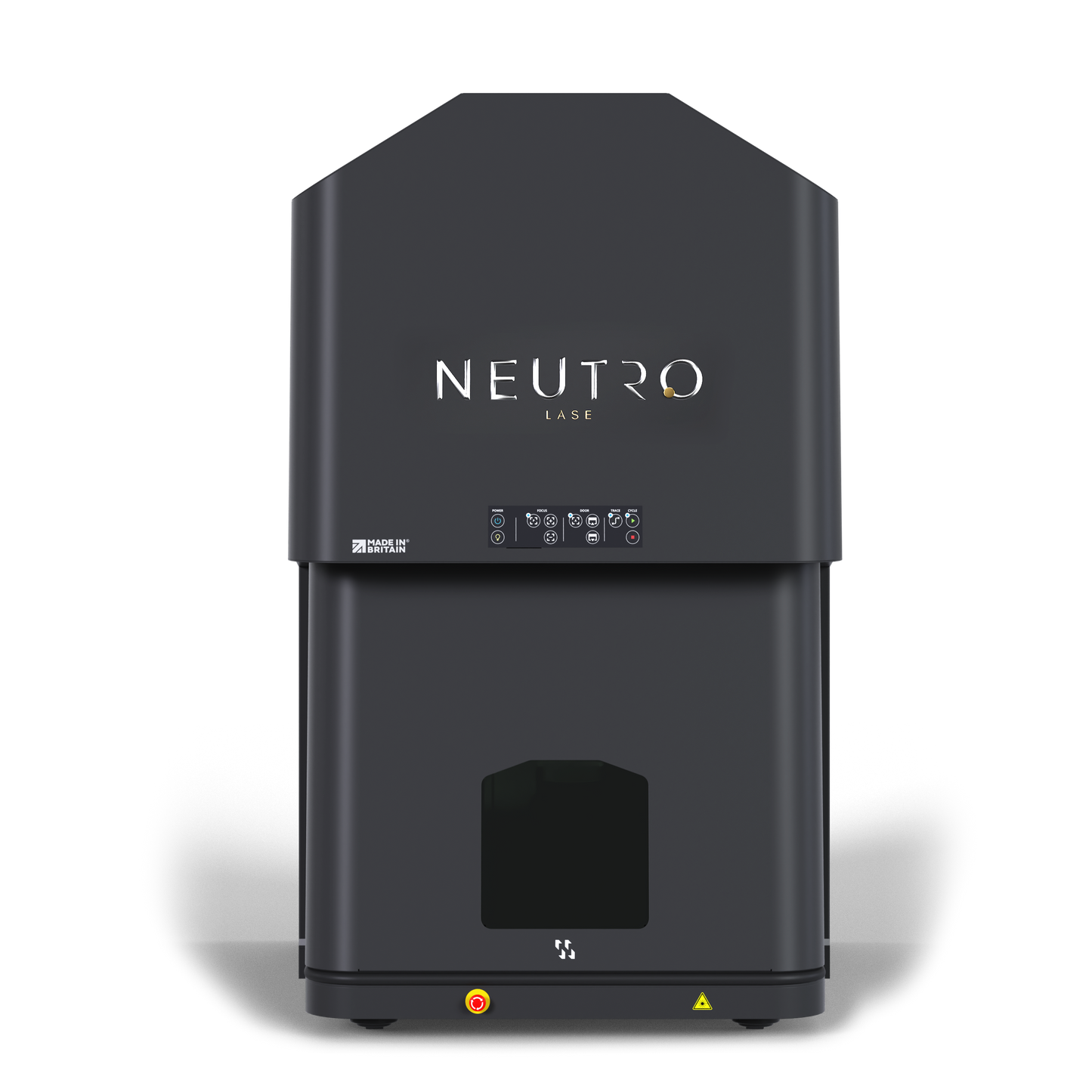

  • Automatic Door – Minimise operational downtime with the convenience of an automatic door. Ensuring faster material loading and unloading, enhancing productivity and workflow efficiency for your laser engraving operations.
  • Positioning Camera – Achieve unparalleled precision with the positioning camera, ensuring exact product alignment for flawless laser engraving results every time.
  • Programmable Z-Axis – Deliver precise and effortless height adjustments with the programmable Z-axis, ensuring optimal compatibility with varying product sizes.
  • 3 Year Warranty - We stand behind the quality of our machines and provide you with peace of mind by offering some of the longest and most comprehensive warranties available on the market.

Request a Quote
Not ready to buy yet? Talk to someone from our team
View full details
Technical Specification
Parameter Value

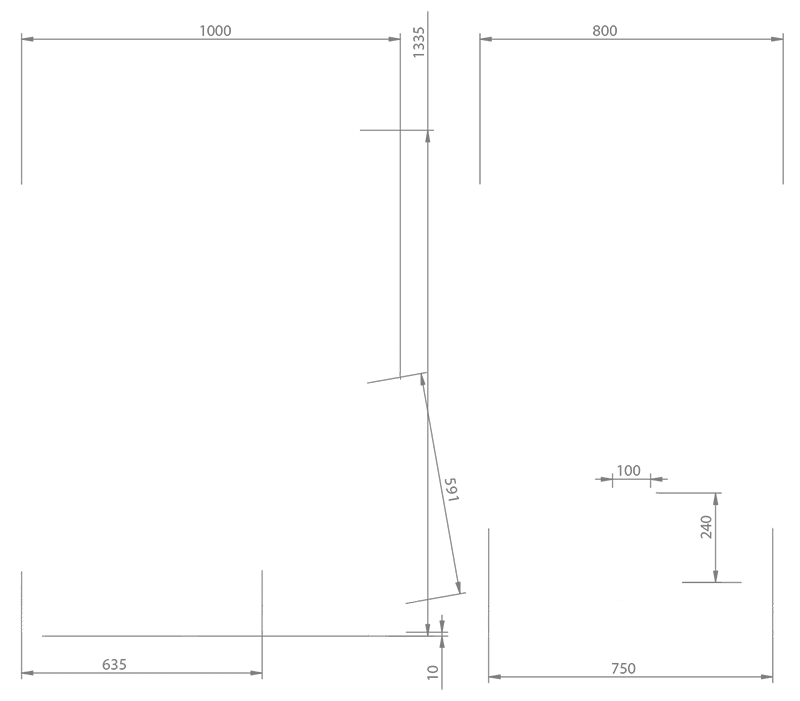

Footprint 800x1000mm
Height 1370mm
Weight KG 200kg
100 lens Marking area: 60x60mm
Focal length: 115mm
Maximum part height: 360mm
Approximate Spot Size (um): 24
163 lens Marking area: 100x100mm
Focal length: 190mm
Maximum part height: 410mm
Approximate Spot Size (um): 39
254 lens Marking area: 160x160mm
Focal length: 294mm
Maximum part height: 366mm
Approximate Spot Size (um): 61
330 lens Marking area: 200x200mm
Focal length: 380mm
Maximum part height: 265mm
Approximate Spot Size (um): 77
420 lens Marking area: 280x280mm
Focal length: 475mm
Maximum part height: 160mm
Approximate Spot Size (um): 101
Service Videos
Product Videos
More Information

Features

  • 30-60W Fiber laser - A powerful laser enabling you to achieve engraving depths of up to 1.5mm on most metals.
  • 60 x 60mm / 100mm x 100mm / 160mm x 160mm / 200 x 200mm / 280mm x 280mm engraving area - Substantial engraving areas allowing you to engrave on a multitude of products. *Dependent on Lens size.
  • Class 1 Safety – Ensure optimal protection with Class 1 safety features, providing a secure working environment while maintaining full operational efficiency. Designed to meet the highest safety standards, it offers peace of mind during laser engraving operations.
  • Positioning Camera - Position your designs onto products with ease.
  • EzCad software - Thanks to its powerful image processing functions, compatibility, and text processing, it meets all types of user demands.
  • On-site installation and Training - Convenient 1:1 training alongside installation with our expert technicians. Giving you all the tools you need to get started.

Optional Components

  • Class 4 Override – Unlock greater flexibility with the Class 4 override feature, enabling marking of larger parts to expand your laser engraving capabilities.
  • Laser Safety Glasses – Providing maximum protection and peace of mind with high-quality laser safety glasses, designed to safeguard operators during laser engraving operations.
  • Additional Software Licenses – Enable multiple users or systems to seamlessly integrate and optimise your laser engraving workflow.
  • Part Height Gauge – Ensure precise focus and optimal engraving results, designed to accurately measure varying material heights.
  • Extended Warranty – Enjoy peace of mind and long-term protection, ensuring reliable, quality cover and support for your laser marking system.
  • Rotary Device - N-RT65 - Expand your laser marking versatility, ensuring precise marking on cylindrical or round objects with ease.
  • Lens Options: Choose from a range of lens options to customise your engraving system, providing flexible marking area sizes to suit various project needs.

    100L – 60 x 60mm Marking area
    163L – 100 x 100mm Marking area
    254L – 160 x 160mm Marking area
    330L – 200 x 200mm Marking area
    420L – 280 x 280mm Marking area

  • Extractor Options: Improve air quality and maintain a clean working environment with a variety of extractor options, designed to efficiently remove fumes and debris during laser engraving, ensuring optimal performance and safety.

    Bofa Ad Access
    Bofa Ad Nano
    Bofa Oracle
