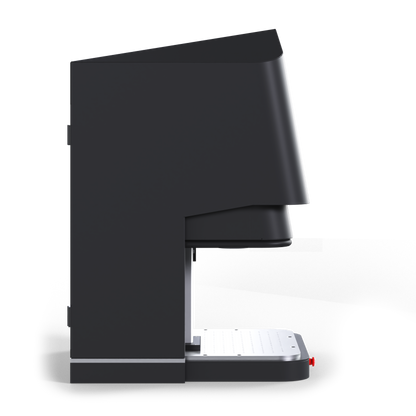

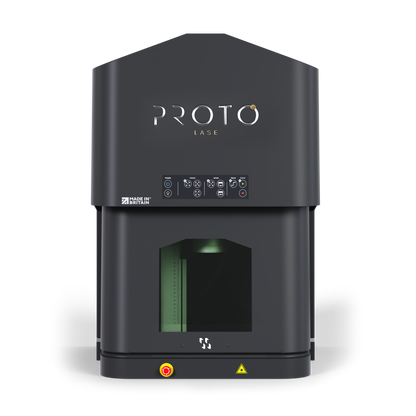

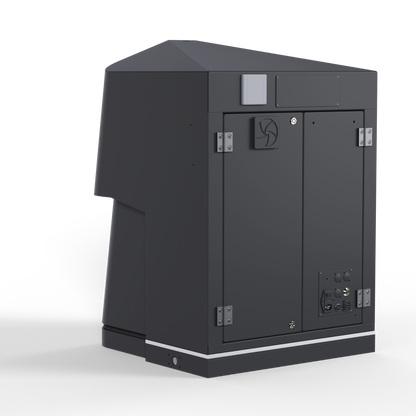

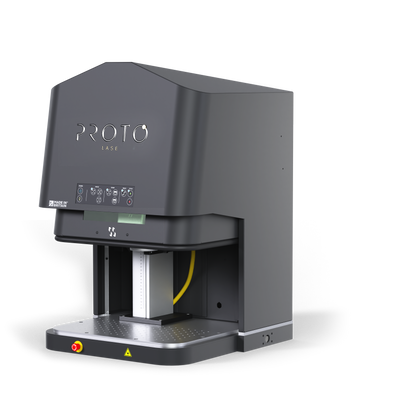

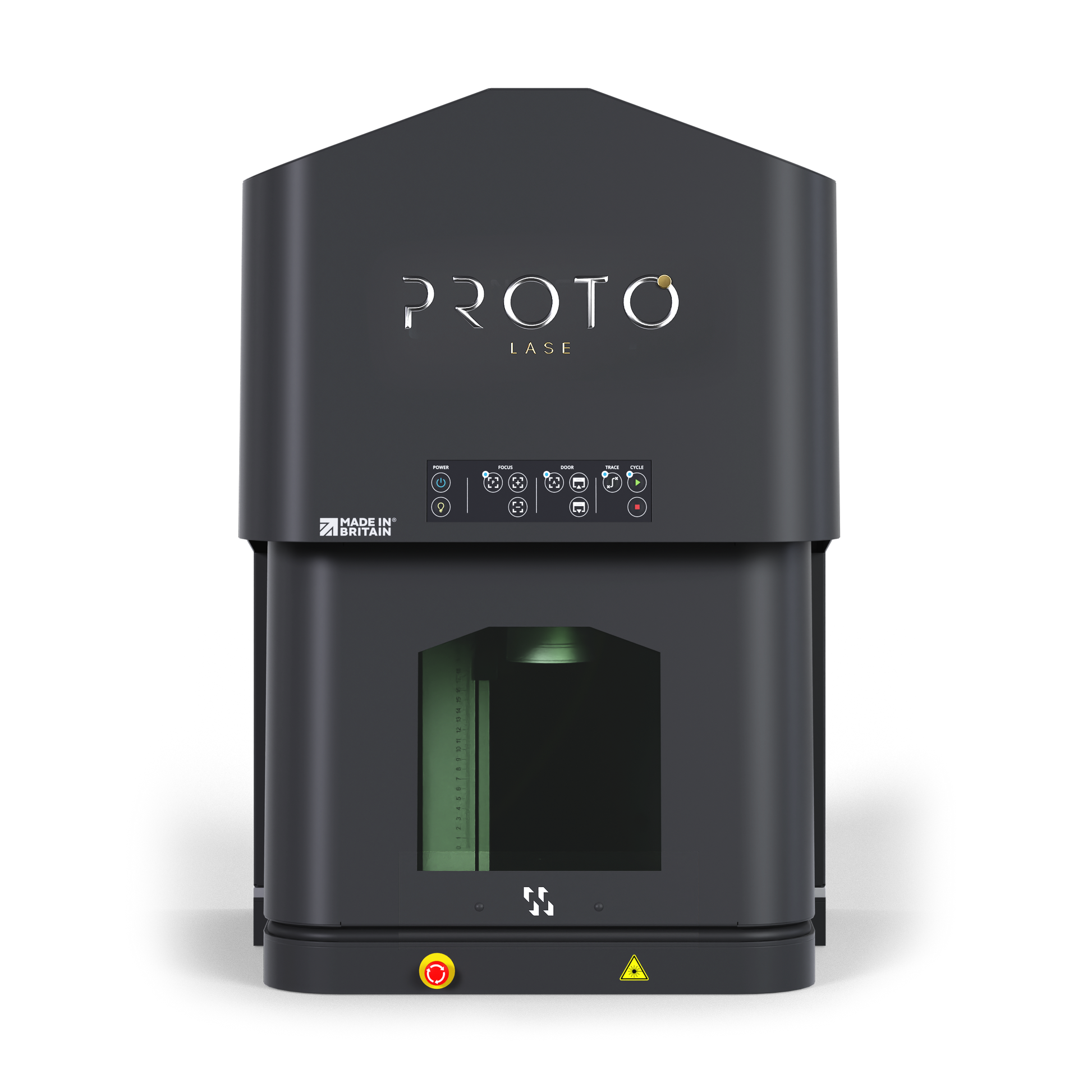

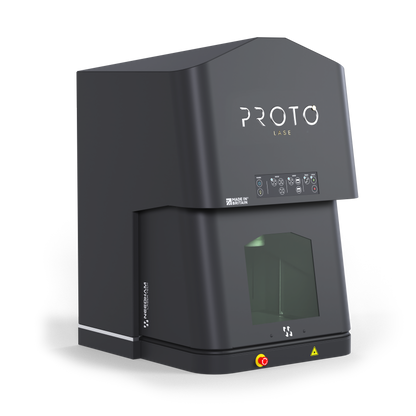

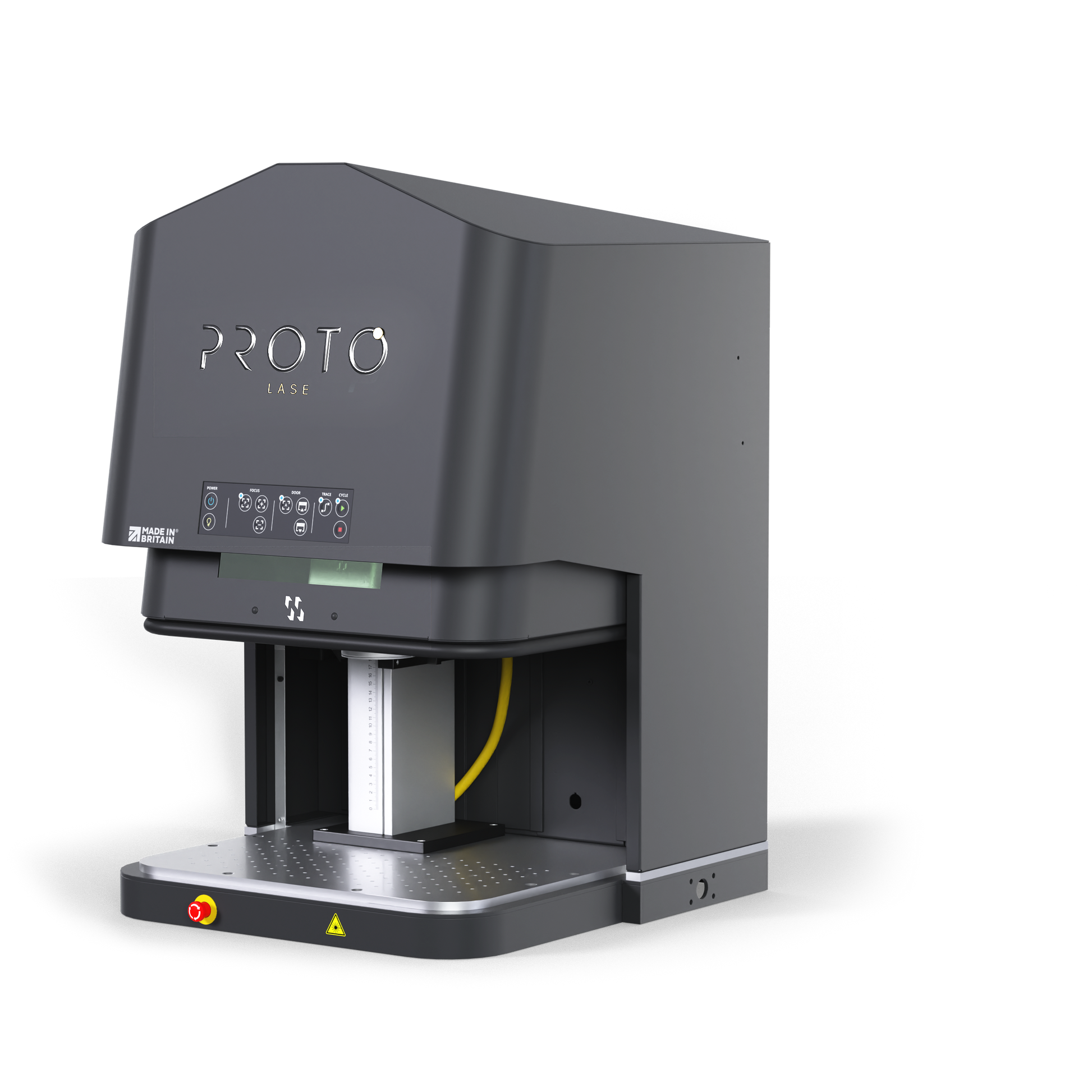

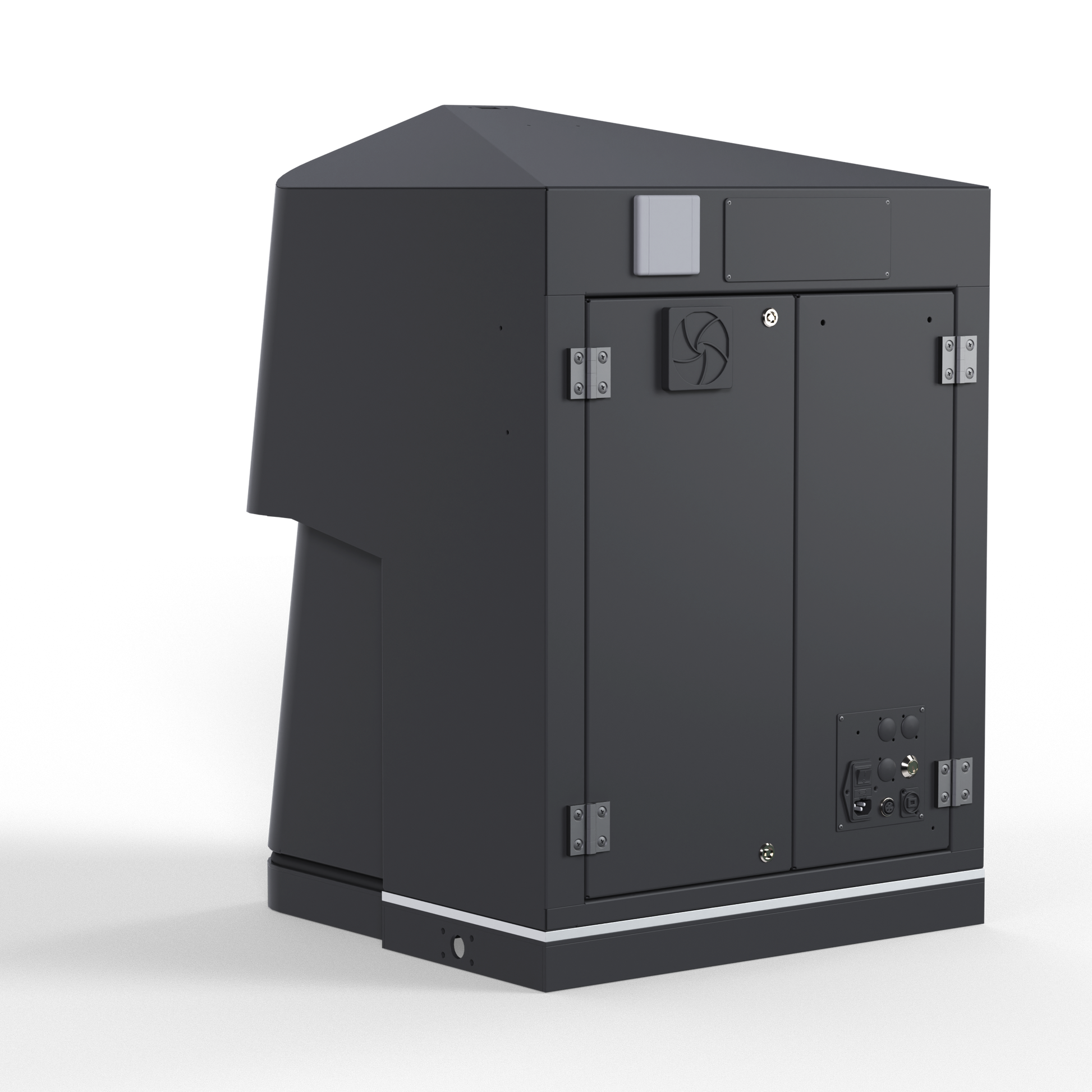

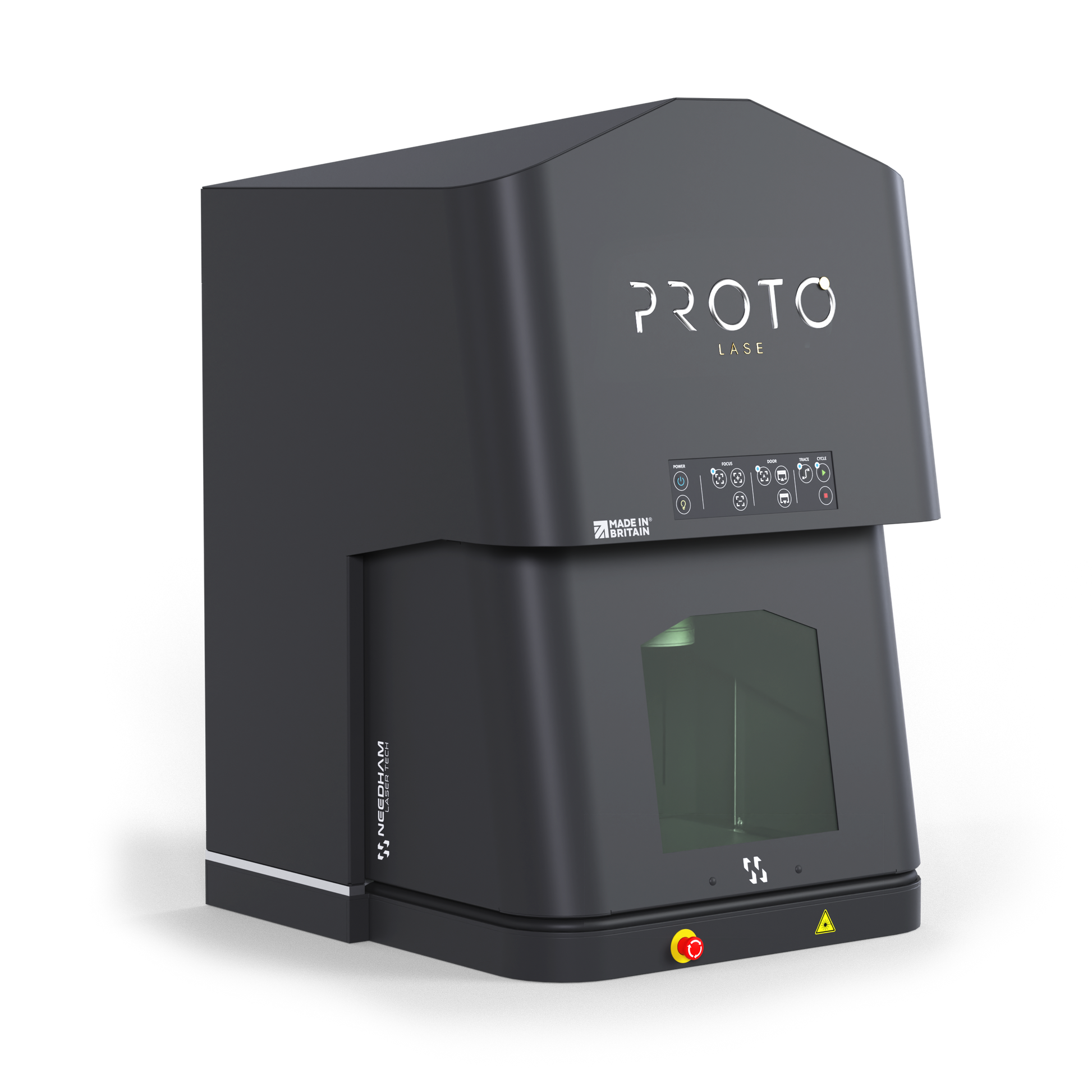

With industrial application capabilities, the Proto Lase is our most accessible machine for static large part marking.
Designed, engineered and built right here in the UK, you can be sure of the highest quality product regardless of its affordable price point.



Key Differentiators & Benefits


High specification features as standard

  • Automatic Door – Minimise operational downtime with the convenience of an automatic door. Ensuring faster material loading and unloading, enhancing productivity and workflow efficiency for your laser engraving operations.
  • Positioning Camera – Achieve unparalleled precision with the positioning camera, ensuring exact product alignment for flawless laser engraving results every time.
  • Programmable Z-Axis – Deliver precise and effortless height adjustments with the programmable Z-axis, ensuring optimal compatibility with varying product sizes.
  • 3-Year Warranty – We offer one of the longest and most comprehensive warranties, ensuring peace of mind with dedicated UK support at every stage. Our expert team is available for design, technical, and general queries, with complimentary training on installation. Plus, our support continues with assistance via phone, email, TeamViewer, and on-site engineers whenever you need them.
  • Lifelong Partnership - By choosing Cyklop, you’re not just investing in machinery; in turn we are investing in you and your success.
    Our commitment extends beyond providing quality laser systems; we’re dedicated to providing comprehensive advice and support, establishing a genuine lifelong partnership, helping you to achieve your goals.



Request a Quote
Not ready to buy yet? Talk to someone from our team
View full details
Technical Specification
Parameter Value

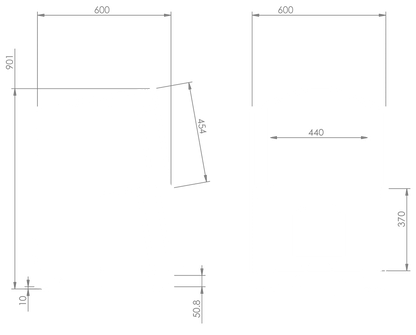

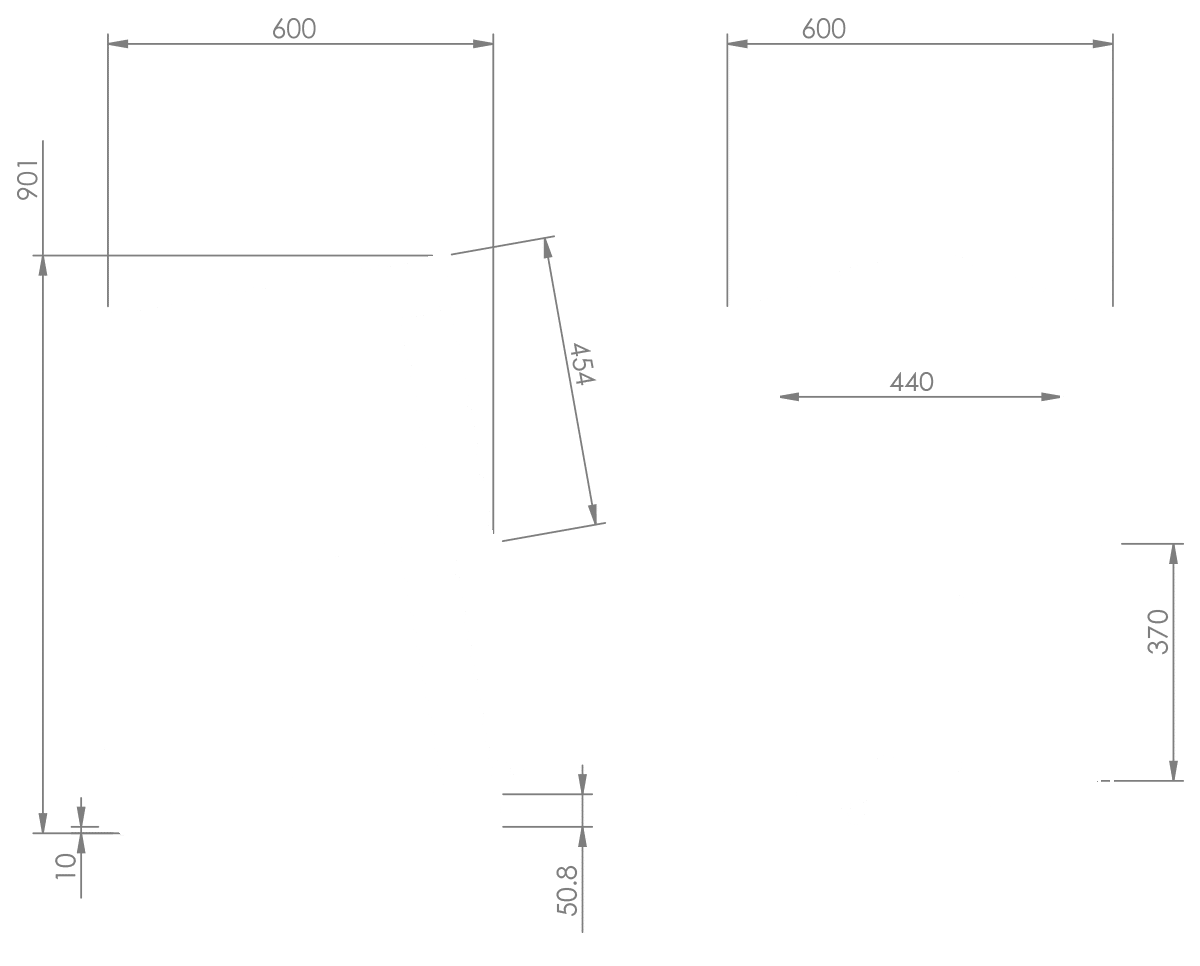

Footprint 600x600mm
Height 920mm
Weight KG 120kg
100 lens "Marking area": "60x60mm", "Focal length": "115mm", "Maximum part height": "360mm", "Approximate Spot Size (um)": "24"
163 lens "Marking area": "100x100mm", "Focal length": "190mm", "Maximum part height": "285mm", "Approximate Spot Size (um)": "39"
254 lens "Marking area": "160x160mm", "Focal length": "294mm", "Maximum part height": "166mm", "Approximate Spot Size (um)": "61"
Service Videos
Product Videos
More Information

Features

  • A powerful laser enabling you to achieve engraving depths of up to 1.5mm on most metals.
  • Substantial engraving areas allowing you to engrave on a multitude of products. *Dependant on Lens size.
  • Ensure optimal protection with Class 1 safety features, providing a secure working environment while maintaining full operational efficiency. Designed to meet the highest safety standards, it offers peace of mind during laser engraving operations.
  • Position your designs onto products with ease.
  • Thanks to its powerful image processing functions, compatibility, and text processing, it meets all types of user demands.
  • Convenient 1:1 training alongside installation with our expert technicians. Giving you all the tools you need to get started.

Optional Components

  • Class 4 Override – Unlock greater flexibility with the Class 4 override feature, enabling marking of larger parts to expand your laser engraving capabilities.
  • Laser Safety Glasses – Providing maximum protection and peace of mind with high-quality laser safety glasses, designed to safeguard operators during laser engraving operations.
  • Mini Workstation Base – Compact and durable mini workstation base, designed to support your laser engraving operations in limited spaces.
  • Additional Software Licenses – Enable multiple users or systems to seamlessly integrate and optimise your laser engraving workflow.
  • Part Height Gauge – Ensure precise focus and optimal engraving results, designed to accurately measure varying material heights.
  • Extended Warranty – Enjoy peace of mind and long-term protection, ensuring reliable, quality cover and support for your laser marking system.
  • Rotary Device - N-RT65 - Expand your laser marking versatility, ensuring precise marking on cylindrical or round objects with ease.
  • Lens Options: Choose from a range of lens options to customise your engraving system, providing flexible marking area sizes to suit various project needs.

    100L – 60 x 60mm Marking area
    163L – 100 x 100mm Marking area
    254L – 160 x 160mm Marking area
  • Extractor Options: Improve air quality and maintain a clean working environment with a variety of extractor options, designed to efficiently remove fumes and debris during laser engraving, ensuring optimal performance and safety.

    Bofa Ad Access
    Bofa Ad Nano
    Bofa Oracle
