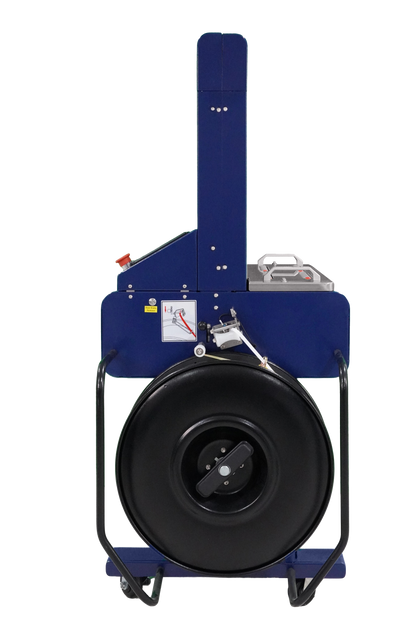

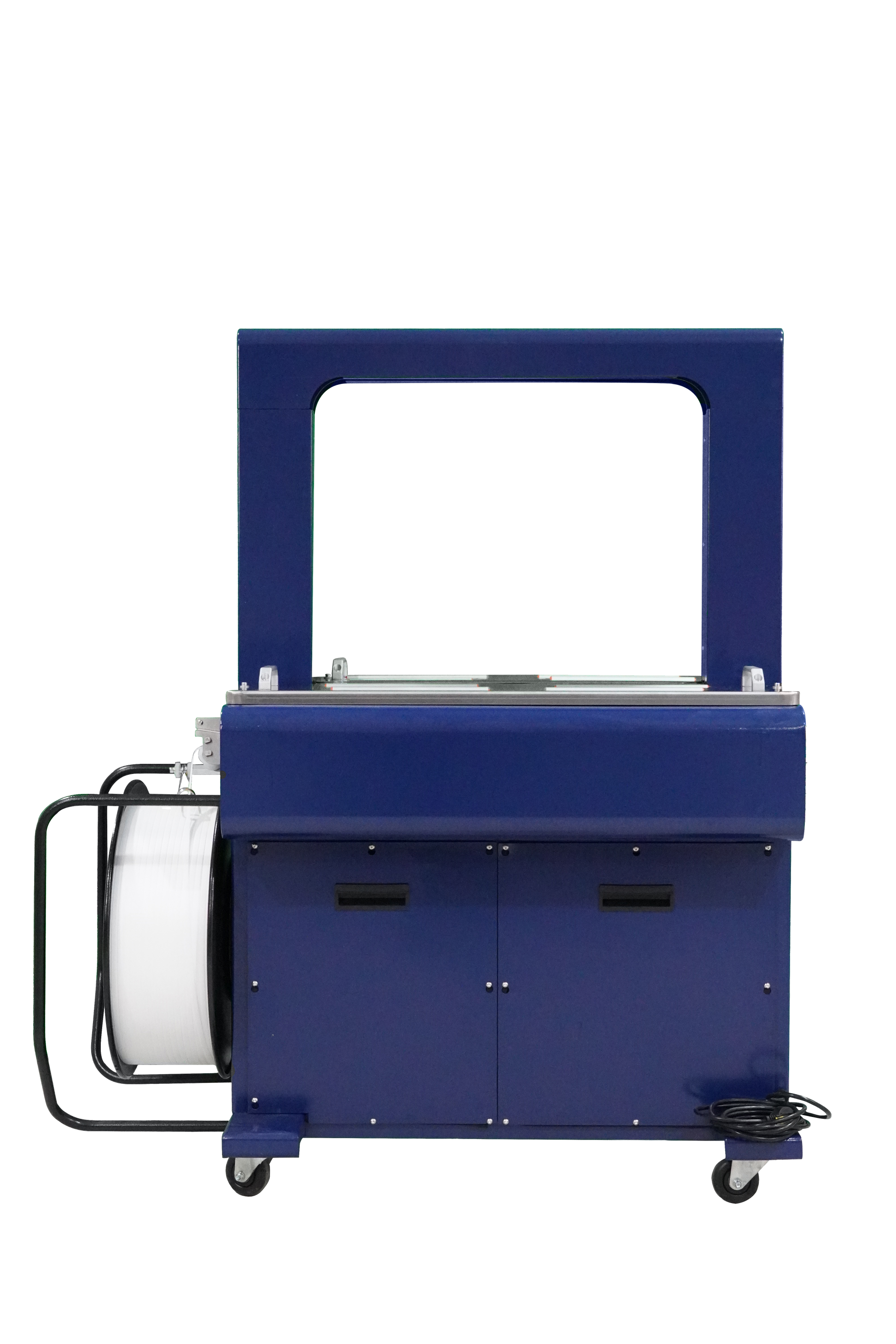

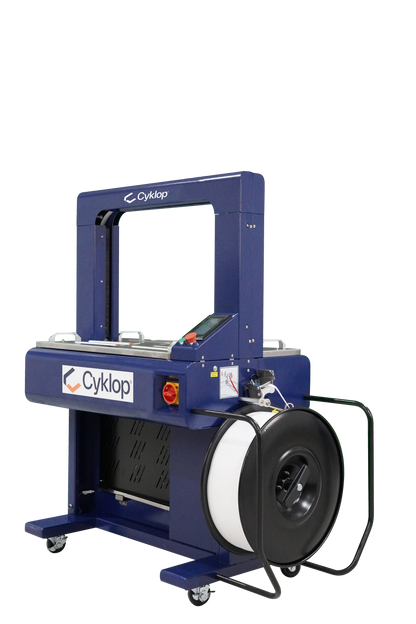

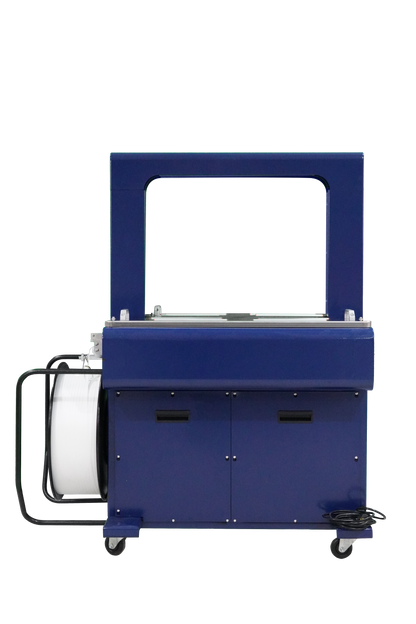

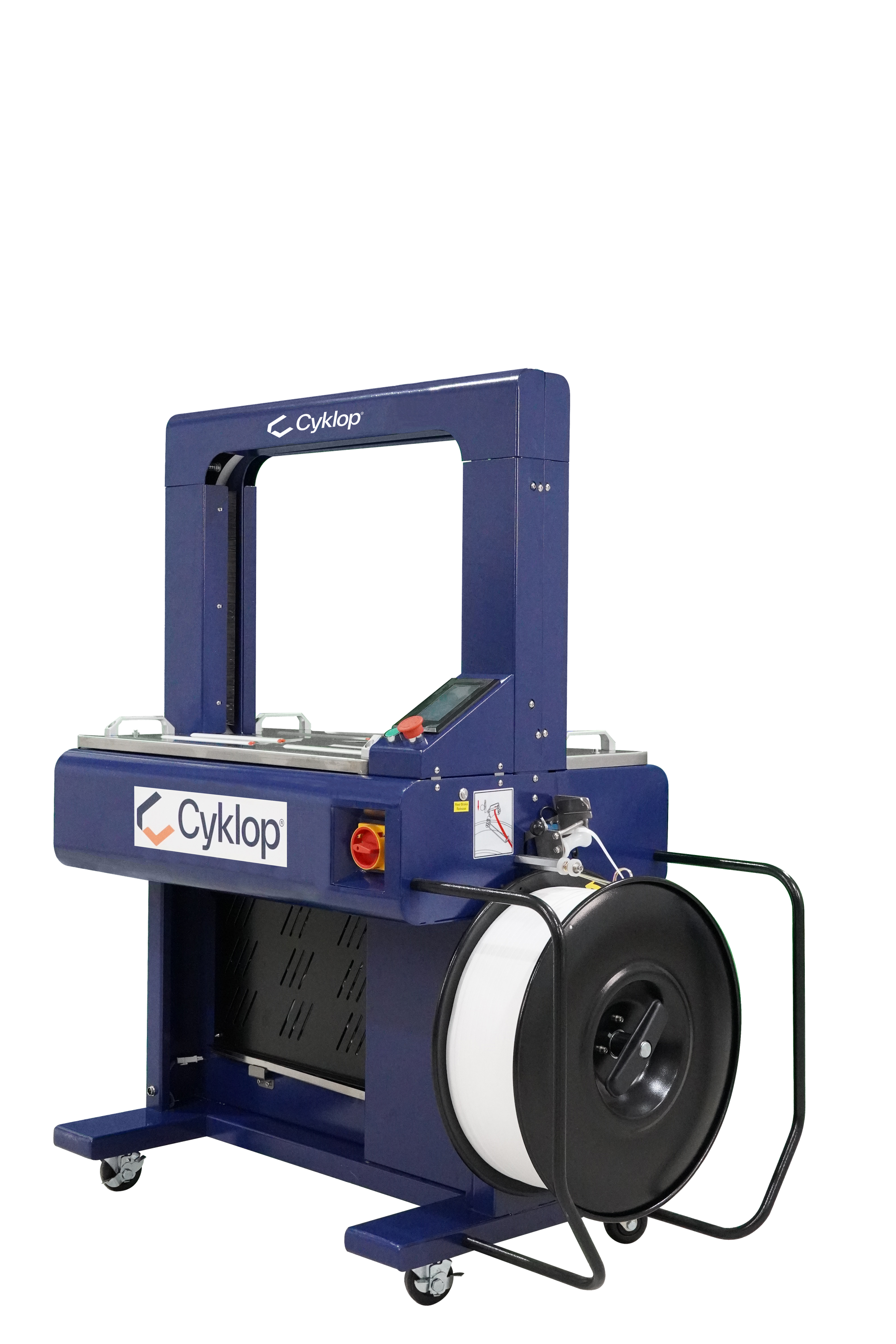

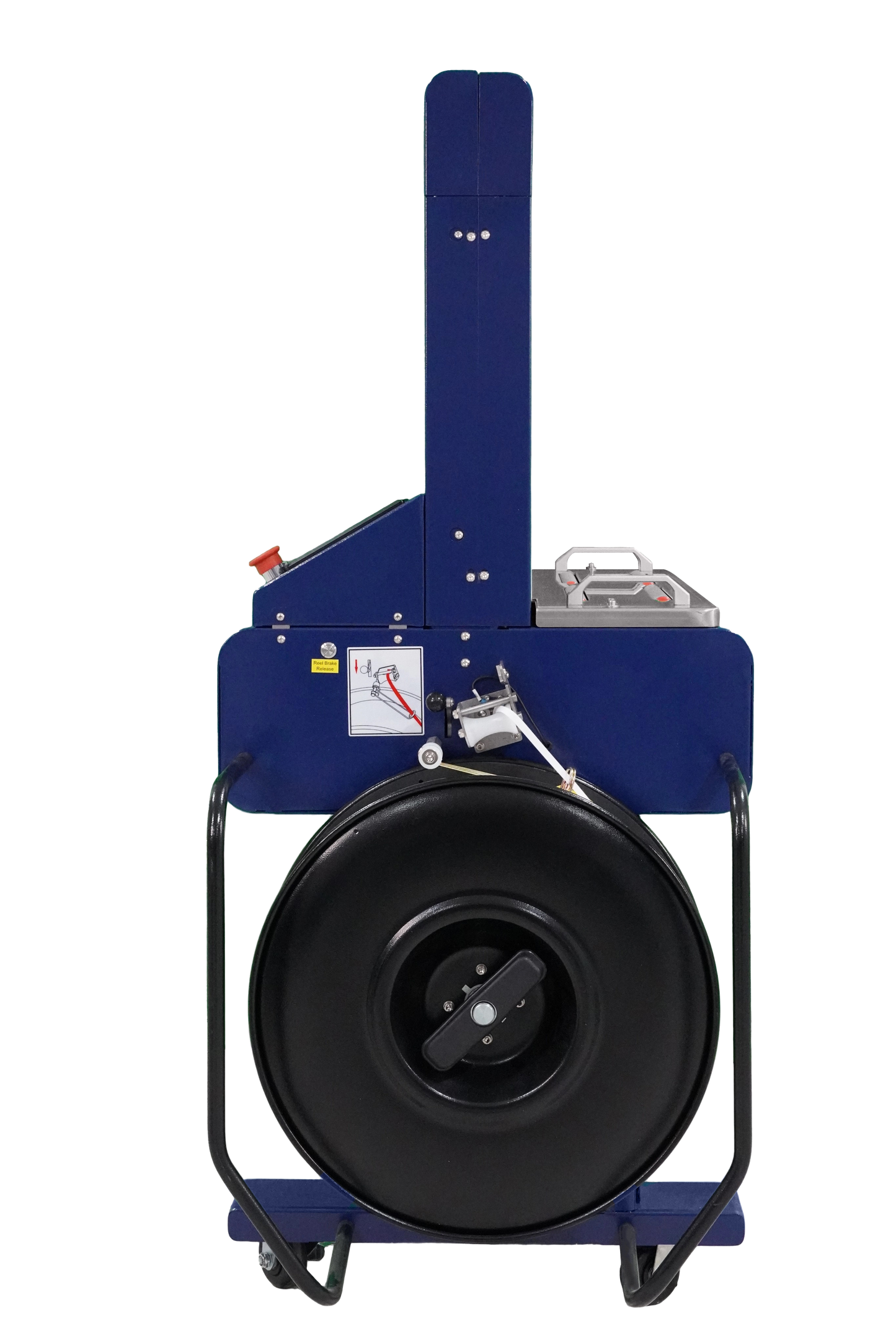

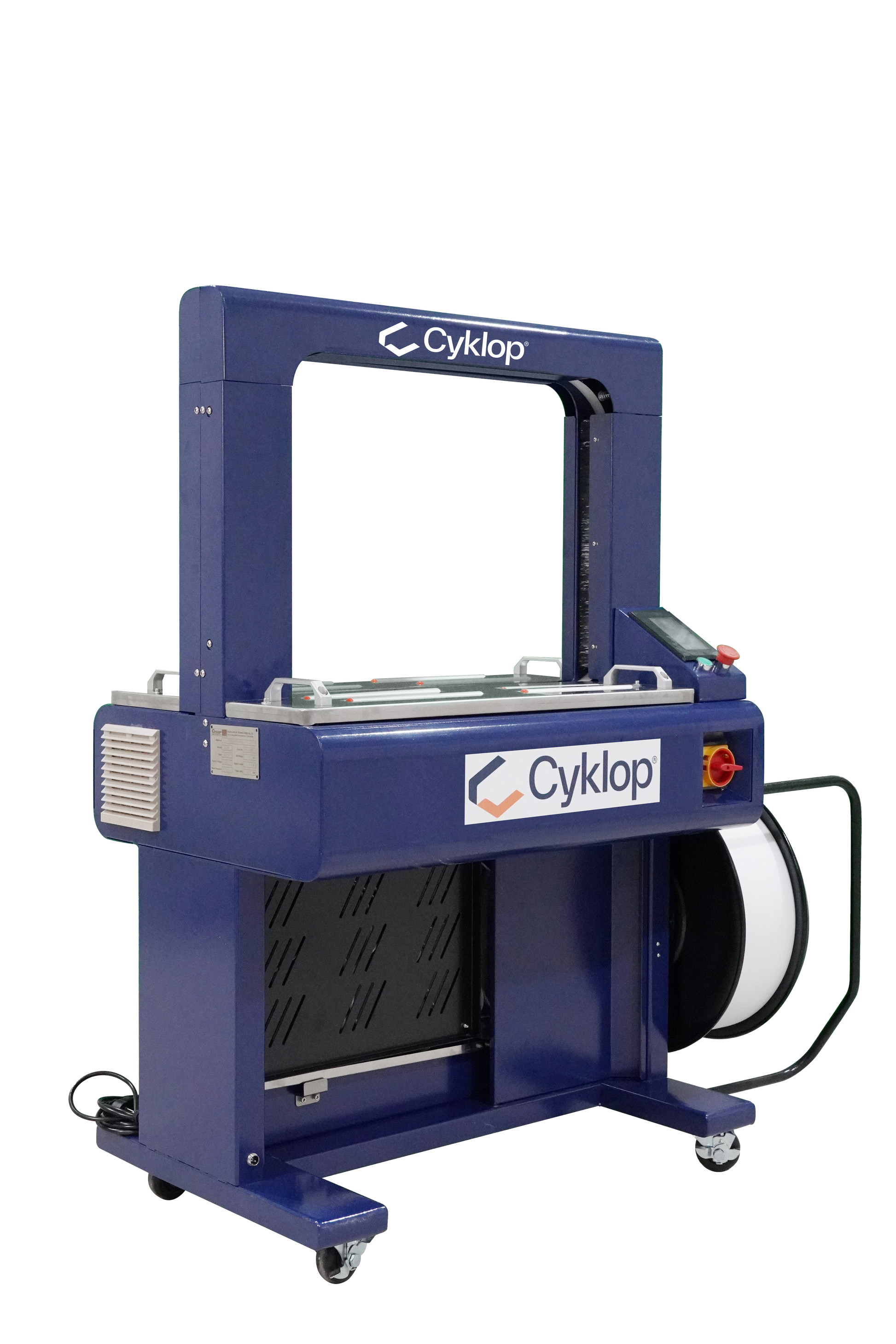

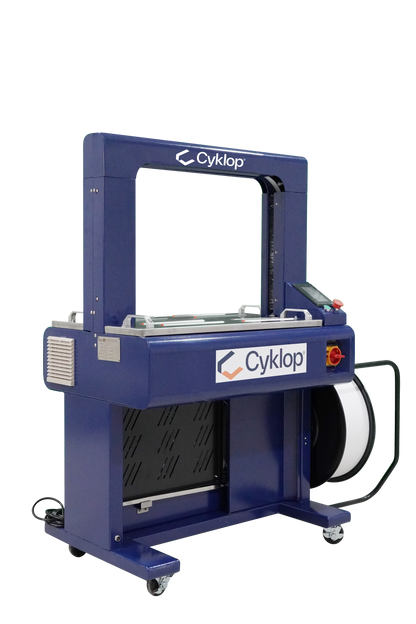

Ampag Bridge

Name: Ampag Bridge
Brand: Cyklop
Availability: OutOfStock

Cyklop’s Ampag Bridge is a high-performance semi-automatic strapping machine developed for high-speed strapping of boxes with accurate tension result. With a strapping speed of up to 75 straps per minute and an adjustable tension range from 0 – 450N, it ensures maximum efficiency while maintaining secure strapping.

The HMI touch panel makes operation simple and flexible, with additional options to run the machine by switch button or foot pedal. The integrated PLC + driver board control provides reliability and easy parameter adjustments for different applications. Equipped with 4 brushless DC motors, the Ampag Bridge guarantees consistent strap tension and stable performance during continuous operation. Its compact size (inner arch W650 x H500 mm, 800mm table height) allows seamless integration into existing packaging lines. The machine supports strap widths of 5 - 6 mm, 8 - 9 mm, or 11 - 12 mm with thicknesses from 0.45 - 0.7 mm.

With its combination of speed, flexibility, and reliability, the Ampag Bridge is the perfect choice for companies looking to secure products efficiently in high-volume packaging environments.

Reliability with an integrated PLC and driver board control
Improved speed
Increased productivity from higher speeds
Reduce waste and improve efficiency with consistent tension of straps
Lower cost of ownership with the durability of the tension wheel system
Energy efficient
Compact size (inner arch W650 x H500 mm, 800mm table height)

Request a Quote

Not ready to buy yet? Talk to someone from our team

View full details

Technical Specification

Parameter	Value
Strapping Speed	Max 75 strappings/min Max 75 strappings/min
Tension range	Max 450N (adjustable) Max 450N (adjustable)
Tensioning system	2 power wheels 2 power wheels
Standard arch size inner	W 650 x H 500 mm W 650 x H 500 mm
Working table height	800 mm 800 mm
Strap sizes width	5-6 mm 8-9 mm 11-12 mm 5-6 mm 8-9 mm 11-12 mm
Strap thickness	0.45 - 0.7 mm 0.45 - 0.7 mm
Strap coil	Inner dia.: 200-210 mm Outer dia.: 400-450 mm Width: 170-190 mm
Control component	PLC+Driver board control PLC+Driver board control
Control panel	By touch panel By touch panel
Power source	1P, 220-240V, 50Hz, 0.9kW 1P, 220-240V, 50Hz, 0.9kW
