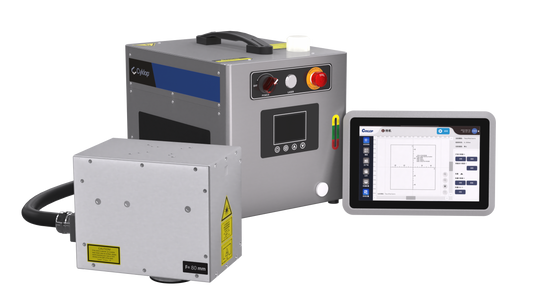

Laser marking system: CM 800 F

CM 800 F series fiber laser marking system, with its light and agile marking unit, helps customers to achieve high-quality and high-speed printing in various production situations. The printing content is flexible, not restricted by fonts, coding or graphics. It is an ideal coding solution for auto-parts, electronics, can, cosmetic, pharma and building material industrials.

High performance long-life laser source increases uptime significantly
High efficiency
In-house developed touch screen high-speed laser printer control system
Easy to operate

Not ready to buy yet? Talk to someone from our team

Technical Specification

Parameter	Value
Marking speed	Up to 2,000 characters/second Up to 2,000 characters/second
Line Speed	Up to 200/min Up to 200/min
Marking windows	50x50 to 300x300mm, 110x110 mm standard 50x50 to 300x300mm 110x110 mm standard
Wave lengths	1,055-1,070 nm 1,055-1,070 nm
Marking format	Standard industrial fonts, Bar codes, Q-R code, Data Matrix, Aztec -code, Han-Xin-code, Graphics, Logos, Symbols etc.
Laser tube	Ytterbium (Yb) pulsed fiber laser Ytterbium (Yb) pulsed fiber laser
User interface	Personalized touch control screen Personalized touch control screen
Communication	UDP, TCP/IP and RS232 UDP TCP/IP and RS232
Integration	Flexible beam delivery options Flexible beam delivery options
Electrical requirement	Temperature 5-40°C (41-104°F) Humidity 10%-90%, no condensing
Sealing and safety standards Cabinet:	IP54 standard, Marking Unit: IP54 standard
Weight	Standard unit: approx. 34 kg Standard unit: approx. 34 kg
