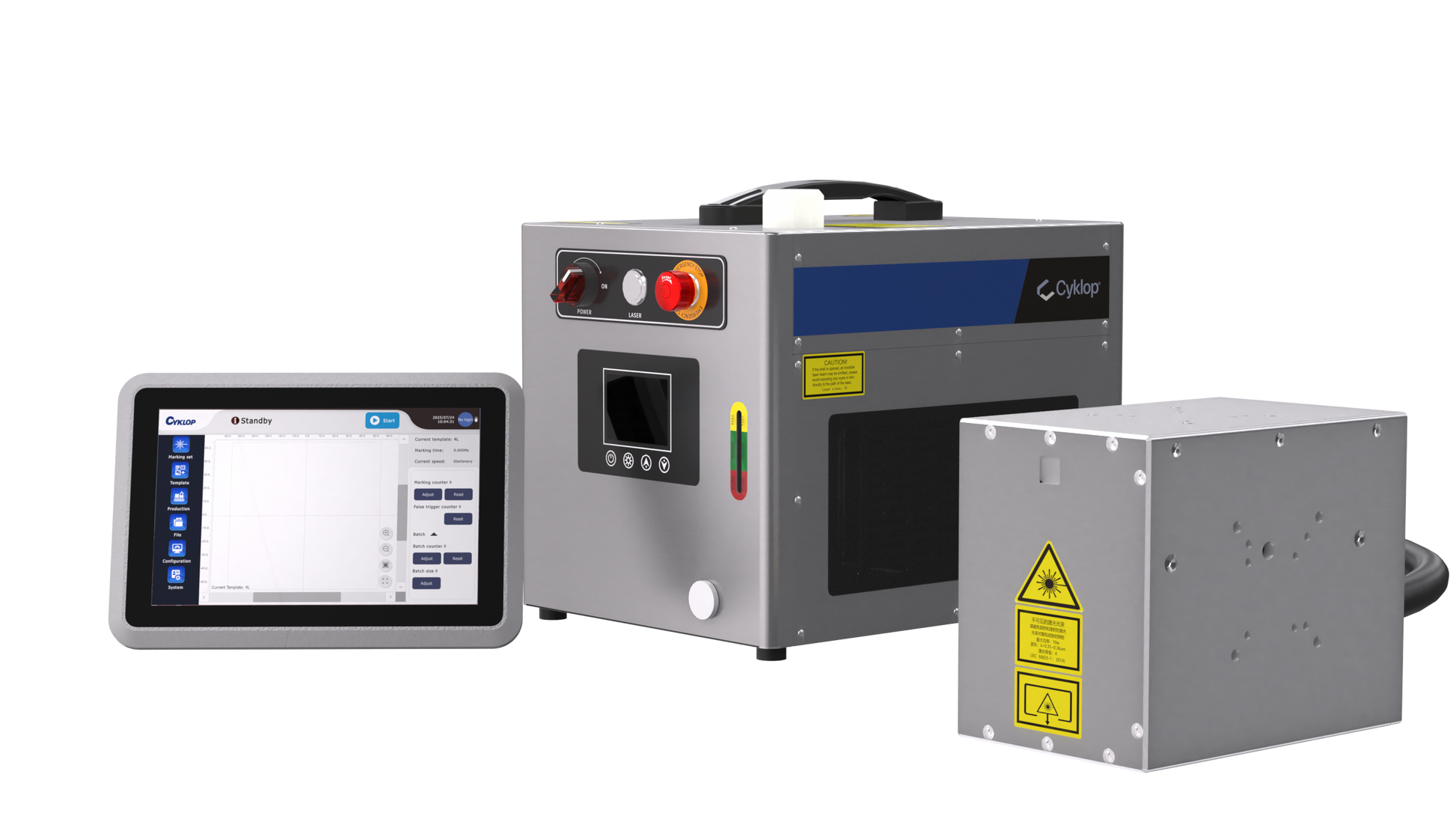

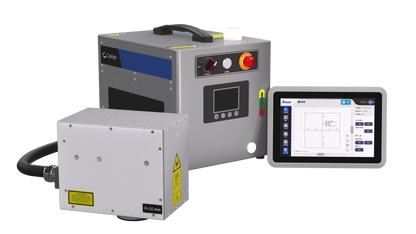

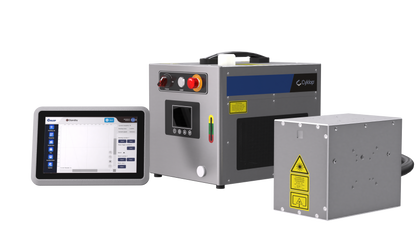

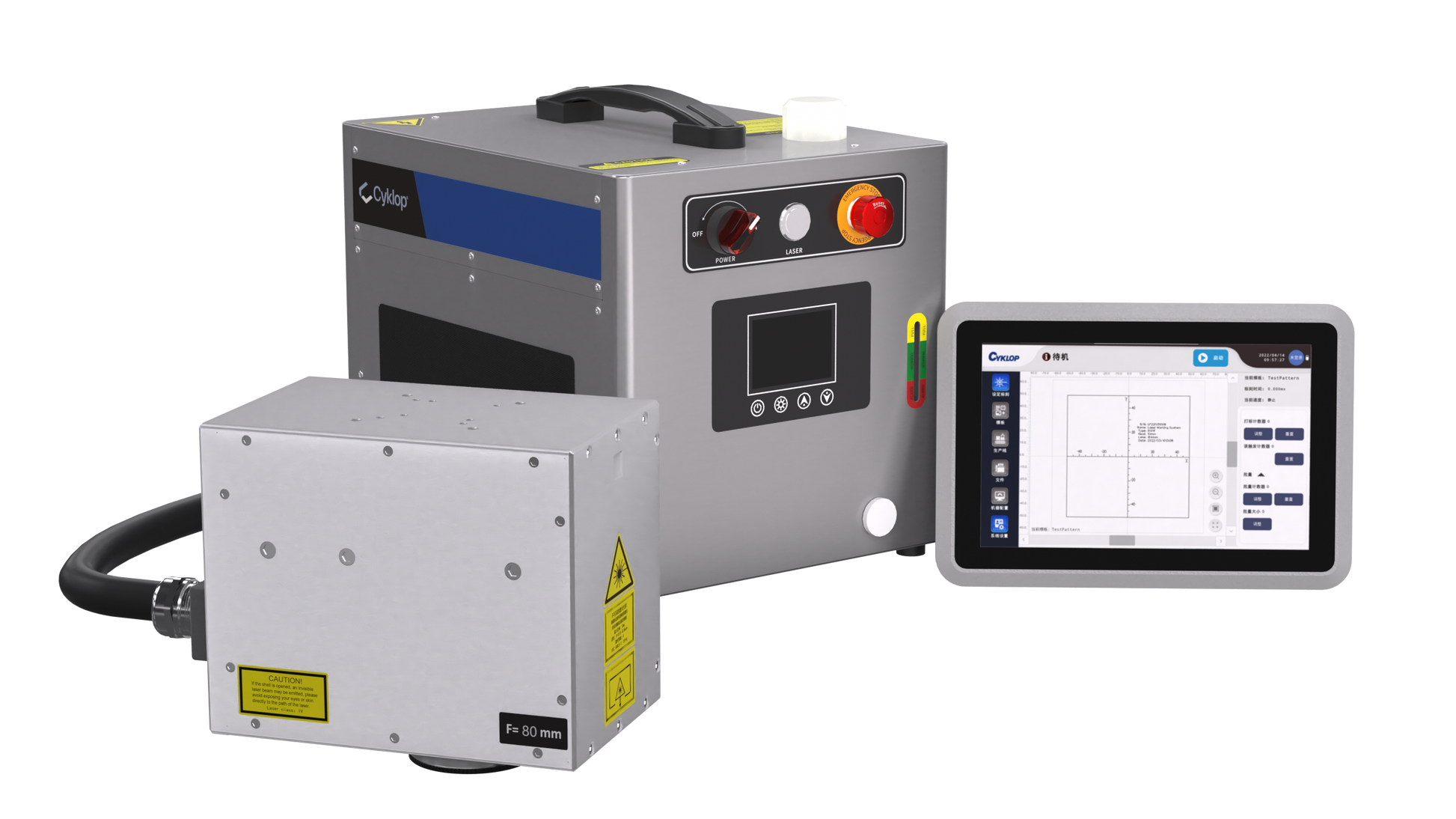

Laser Marking System: CM505U-T

The CM505U‑T is a compact, high‑efficiency 5W UV laser printer built for accurate, non‑contact coding on flexible packaging and diverse materials. Engineered to fit smoothly into existing TTO production lines, it delivers consistent, low‑maintenance marking with no running consumables. Equipped with a user‑friendly 10.1‑inch touch panel, it enables straightforward operation even in fast‑paced manufacturing settings. The CM505U‑T serves as a smart upgrade to cut downtime, lower operational costs and enhance coding quality for rigorous packaging workflows.

Eliminates ongoing supply costs: no ribbons, regular consumables needed.
Cuts production interruptions: no line stops for replacing marking parts or supplies.
Creates durable, long lasting marks: resistant to oil, dust, alcohol and heat treatment.
Reduces material loss: fewer rejected films and products from unclear or faded codes.
Delivers stable performance over time: minimal upkeep and extended operational life.
Simplifies daily use and monitoring: easy learning curve and fewer operator mistakes.

Not ready to buy yet? Talk to someone from our team

Technical Specification

Parameter	Value
Laser types and characteristics	Main Material：Anodized aluminum oxide structure + stainless steel Laser Tube：5W nanosecond UV laser generator Wavelength：355 nm Cooling System：Integrated water-cooled (integrated) Positioning Method：UV positioning and infrared assisted focusing
Substrates / Application	It is especially suitable for production lines that are using Thermal Transfer Overprinters (TTO). Plastics: PE, PVC, PP, PS, POM, PC, acrylic, nylon, etc. Flexible PCB Metals: stainless steel, aluminum, gold, silver, titanium, brass, etc. Wood products: MDF, plywood, fiberboard Glass
Speed	Scan Head Marking Speed：Up to 5000 mm/s Production Line Speed：Up to 200 m/min
Marking characteristics	Number of lines marked: limited only by character height and markable area. Font support: double-line font, dot matrix font, standard industrial font (Windows TrueType), single-line font Machine-readable codes: Barcodes: Code 39, EAN-13, Code 128, Code 93, Code 128A, Code 128B, Code 128C, GS1-128, PDF417, ITF-14, Codebar 2, UPCA 2D codes: QR-Code, Data Matrix, Aztec-Code, DotCode, Han Xin-Code Marking objects & effects: Graphics, logos, symbols Marking layout & functions: Linear, circular, angular, reverse, rotate, sequential and batch numbering, automatic date, layered code, time code, real-time clock
User interface	Screen size: 10.1 inch Screen size: 10.1 inch
Communication and I/O Interfaces	UDP, TCP/IP, RS232 Supports encoder and sensor inputs
Standard and optional configurations	Standard: marking machine, 10.1-inch external touch screen, touchscreen bracket, fiber optic sensor, universal adjustment sensor bracket, hex tool kit (UV lasers are equipped with water cooling system). Optional: Photoelectric sensor, encoder, encoder bracket, encoder wheel, fume extractor (single head), optional lenses and refer to spare part list.
Marking area and working distance	UV Focus Lens/100100mm (Standard) UV Focus Lens/200200mm (Optional)
Physical characteristics	Working temperature: 5-40°C (41-104°F) Humidity: 10%-90%, non-condensing Electrical requirements: 100~130VAC/200~240 VAC, 50~60 Hz, 0.72kW Overall dimensions: see dimensional drawings for details Net weight: 24kg

Service Videos

Product Videos

More Information

The CM505U‑T is well‑suited for food and beverage, pharmaceutical, cosmetic, consumer goods and flexible packaging sectors. It performs reliable marking on plastics (PE, PVC, PP, PS, PC), metals, wood‑based materials and glass. Ideal for high‑speed pillow packaging, vertical/horizontal packaging machines and bag‑making lines, it ensures full traceability and compliance through clear, permanent codes. The UV laser process generates no dust or odors, supporting cleaner production and sustainable manufacturing goals.
