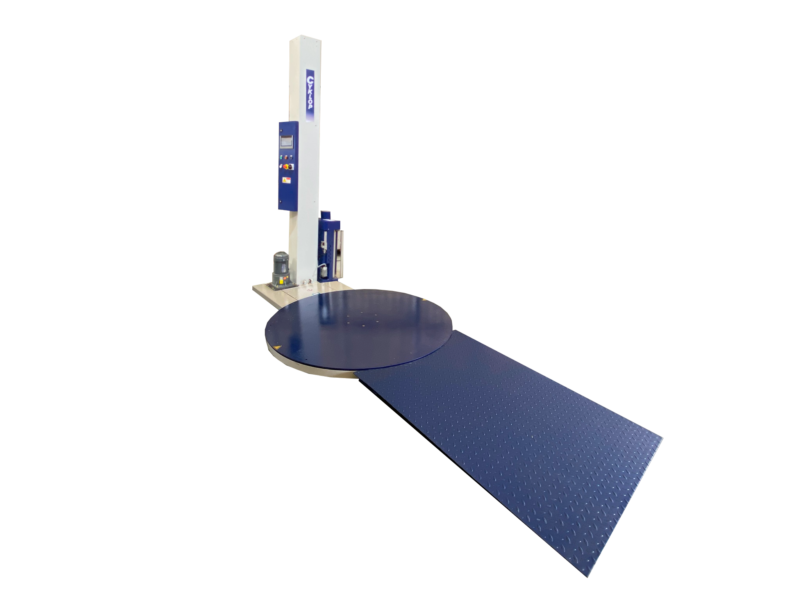

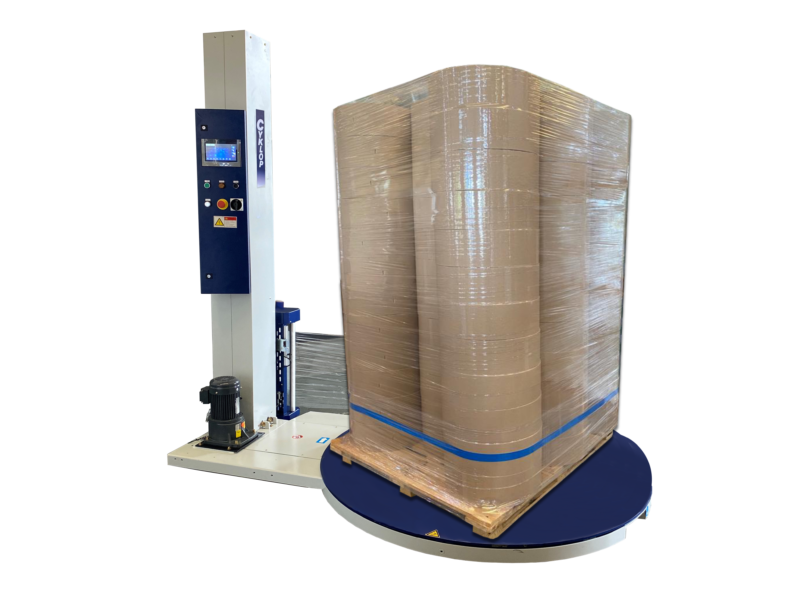

Stretch Wrapper: CST 204

Stretch wrapper with high processing speed

The semi automatic pallet wrapper CST-204 offers many packaging solutions, wrapping boxes, sacks and assorted packages with film stretch. The CST-204 machine is easy to operate due to its touch screen panel with intuitive commands and its visual & audio alerts. The pre-stretching system can be adjusted up to 300%.

Motorized head for film economy
“Easy to pass” system to film stretch
Visual and audio alerts on the panel
Touch screen panel with 8 programs
Photocell to load high detection of the cargo
Manual lock to film stretch
Adjustable pre-stretching
Ramp – optional

Not ready to buy yet? Talk to someone from our team

Technical Specification

Parameter	Value
Dimensions (LxWxH)	94.72" x 64.96" x 110.63" 94.72" x 64.96" x 110.63"
Base diameter	64.96" 64.96"
Tower height	110.63" 110.63"
Capacity	25 cycles/hour 25 cycles/hour
Maximum load	4409.25 lbs 4409.25 lbs
Programs	8 8
Panel	Touch screen Touch screen
Stretch film cut	Automatic Automatic
Speed	12 rpm 12 rpm

Stretch Wrapper: CST 204

Stretch Wrapper: CST 204

Stretch Wrapper: CST 204

Stretch Wrapper: CST 204
